Left Side Of The Engine Compartment

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, 2010 Audi S5, 2009 Audi S5, and 2008 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Components A Through J Are Not Shown In The Exploded View.

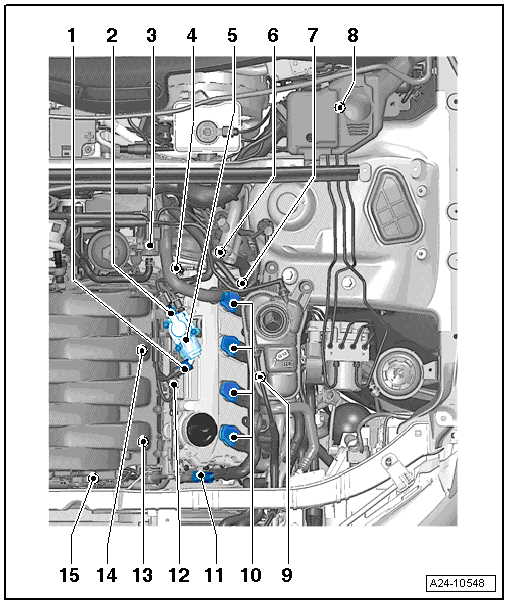

Fig 1: Component Location Overview (Left Side Of Engine Compartment)
GWWA24-10548Courtesy of AUDI OF AMERICA, LLC
  1. 1 - Fuel Metering Valve 2 -N402-
    • Common component with high pressure pump
    • Component location, refer to Figure
  2. 2 - Low Fuel Pressure Sensor -G410-
    • Component location, refer to Figure
  3. 3 - Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
    • Component location, refer to Figure
    • Evaporative Emission (EVAP) Canister Purge Solenoid Valve 2 -N115-
  4. 4 - Camshaft Adjustment Valve 2 -N208-
    • Component location, refer to Figure
    • 2.4 Nm
  5. 5 - High pressure pump
    • With Fuel Metering Valve 2 -N402-
    • Component location, refer to Figure
  6. 6 - Electrical Connectors For
    • Heated Oxygen Sensor (HO2S) 2 -G108- before catalytic converter with Oxygen Sensor (O2S) 2 Heater -Z28-
    • Oxygen Sensor (O2S) 2 Behind Three Way Catalytic Converter (TWC) -G131- with Oxygen Sensor (O2S) 2 (behind Three Way Catalytic Converter (TWC)) Heater -Z30-
    • Component location, refer to Figure
  7. 7 - Camshaft Adjustment Valve 2 (exhaust) -N319-
    • Component location, refer to Figure
    • 2.4 Nm
  8. 8 - Engine Control Module -J623-
  9. 9 - Camshaft Position (CMP) sensor 4 -G301-
  10. 10 - Ignition Coils, Cylinder Bank 2
    • Ignition Coil 5 with Power Output Stage -N323-
    • Ignition Coil 6 with Power Output Stage -N324-
    • Ignition Coil 7 with Power Output Stage -N325-
    • Ignition Coil 8 with Power Output Stage -N326-
    • Component location, refer to Figure
    • Removing and installing, refer to IGNITION COILS
  11. 11 - Electrical Harness Connectors
    • Knock Sensor (KS) 3 -G198-
    • Knock Sensor (KS) 4 -G199-
  12. 12 - Camshaft Position (CMP) sensor 2 -G163-
  13. 13 - Knock Sensor (KS) 3 -G198-
  14. 14 - Knock Sensor (KS) 4 -G199-
  15. 15 - Components On Front Of Engine
    • Electrical harness connector, refer to Figure
    • Intake Flap Motor -V157-
    • Beginning with MY 2009, the Variable Intake Manifold Runner Motor -V157- has become the Intake Manifold Tuning Valve -N316-
    • Intake Manifold Runner Position Sensor -G336-
    • Variable Intake Manifold Runner Motor -V183-
    • Beginning with MY 2009, the Variable Intake Manifold Runner Motor -V183- has become the Intake Manifold Tuning Valve -N156-
    • Intake Manifold Runner Position Sensor 2 -G512-
    • Electrical connector from Knock Sensor (KS) 4 -G199-
    • Electrical connector from Knock Sensor (KS) 3 -G198-
    • Electrical connector from Knock Sensor (KS) 1 -G61-
    • Electrical connector from Knock Sensor (KS) 2 -G66-
  16. A - Engine Coolant Temperature (ECT) Sensor -G62-
  17. B - Engine Speed (RPM) Sensor -G28-
  18. C - Throttle Position (TP) Sensor -G79- /Accelerator Pedal Position Sensor 2 -G185-
    • in footwell on accelerator pedal (both sensors are integrated into one housing)
    • Component location Figure
    • Removing and installing appropriate service information.
  19. D - Brake Light Switch -F- /Brake Pedal Switch -F47-
  20. E - Clutch Position Sensor -G476-
    • The following components are integrated in the Clutch Position Sensor -G476- : Clutch Pedal Starter Interlock Switch -F194- and Clutch Vacuum Vent Valve Switch -F36-
    • Only for vehicles with manual transmission
    • In footwell on clutch pedal
  21. F - Fuel Pump (FP) Control Module -J538-
    • Component location, refer to Figure
  22. G - Heated Oxygen Sensor (HO2S) -G39- before catalytic converter with Oxygen Sensor (O2S) Heater -Z19-
  23. H - Heated Oxygen Sensor (HO2S) 2 -G108- before catalytic converter with Oxygen Sensor (O2S) 2 Heater -Z28-
  24. I - Oxygen Sensor (O2S) Behind Three Way Catalytic Converter (TWC) -G130- with Oxygen Sensor (O2S) 1 (behind Three Way Catalytic Converter (TWC)) Heater -Z29-
  25. J - Oxygen Sensor (O2S) 2 Behind Three Way Catalytic Converter (TWC) -G131- with Oxygen Sensor (O2S) 2 (behind Three Way Catalytic Converter (TWC)) Heater -Z30-
