Drive Plate, Removing And Installing: Removing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

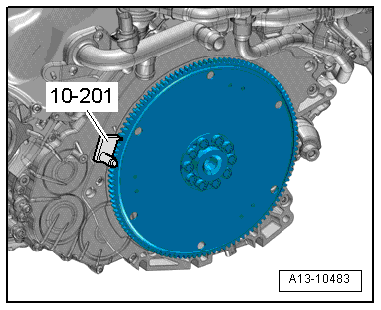

Fig 1: Identifying Drive Plate & Counter Hold Tool 10 - 201

Courtesy of AUDI OF AMERICA, LLC

The Transmission Is Removed. Refer to TRANSMISSION - REMOVING AND INSTALLING [0B4] , TRANSMISSION, ASSEMBLY SEQUENCE [0B2 AWD] .

-- Insert the Counterhold - Flywheel:10-201 to loosen the bolts.

CAUTION:

The Outer Surface Of The Bearing Flange At The Drive Plate Could Be Damaged.

Use A Multipoint Socket Wrench With A Shaft At Least 40 Mm Long To Loosen And Tighten The Drive Plate Bolts.

-- Remove the bolts, drive plate and sensor wheel.
