Right Engine Mount, Removing And Installing: Installing

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

NOTE:

When installing, bring all cable ties back to same positions.

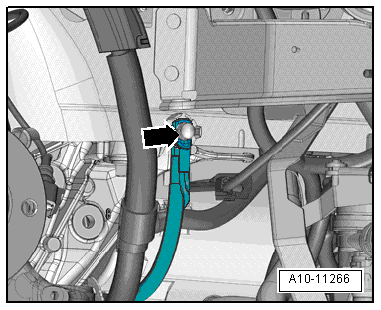

-- Install the electric wires. Refer to Figure.

-- Install the generator. Refer to GENERATOR .
