Engine, Removing: Procedure

WARNING: This page is about a different car, the 2015 Audi RS 5, 2014 Audi RS 5, and 2013 Audi RS 5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

With lock carrier installed, engine is removed downward together with the transmission and the subframe.

During installation, cable ties must be installed at the same location.

WARNING:

Risk of vehicle tipping over with engine removed.

  • Secure vehicle. Luggage compartment must be empty for this.

There is a risk of injury because the fuel is under very high pressure.

  • Reduce the fuel pressure down to residual pressure before opening high pressure area of the fuel injection system.

-- Reduce the fuel pressure in the high pressure area. Refer to RELEASING PRESSURE IN HIGH PRESSURE AREA .

NOTE:

So that the front wheels can still be turned with the battery disconnected, the battery must only be disconnected with ignition key inserted.

To be able to turn the drive axle to remove it, move the selector lever to "N" and release the electromechanical parking brake before disconnecting the battery.

-- Position the front wheels so they are straight.

-- Turn off the ignition and remove the key.

Fig 1: Identifying Battery
GWWA27-10141Courtesy of AUDI OF AMERICA, LLC
CAUTION:

Danger of causing damage to electronic components.

  • Complete the steps for disconnecting the battery.

-- Disconnect the battery Ground (GND) cable -2-. Refer to BATTERY .

-- Discharge the refrigerant circuit. Refer to REFRIGERANT CIRCUIT .

Vehicles with Hydraulic Power Steering

Fig 2: Identifying Reservoir Bracket To Body
GWWA48-10401Courtesy of AUDI OF AMERICA, LLC

-- Extract the power steering oil from the reservoir with the Used Oil Collection and Extraction Unit:SMN372500  .

Continuation for All Vehicles

Fig 3: Engine Cover (4.2L Engine)
GWWA10-11257Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine cover -arrows-.

WARNING:

Risk of scalding due to hot steam and hot coolant.

  • The coolant system is under pressure when the engine is warm.
  • Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure.

-- Open the coolant reservoir cap.

-- Remove the left and right front wheels.

-- Remove the left and right front wheel housing liner. Refer to WHEEL HOUSING LINER .

-- Remove the noise insulation -1 and 2-. Refer to NOISE INSULATION .

Fig 4: Automatic Transmission Fluid Oil Pan
GWWA10-11071Courtesy of AUDI OF AMERICA, LLC

-- Remove the headlamp housing bracket. Refer to HEADLAMPS .

-- Remove the left and right bolt -1- and nut -3- and the brace -2-.

Fig 5: Identifying Left And Right Bolt -1- And Nut -3- And Brace -2-
GWWA10-11466Courtesy of AUDI OF AMERICA, LLC
NOTE:

Collect escaping coolant in a clean container for disposal or reuse.

-- Place the Shop Crane - Drip Tray:VAS6208  under engine.

-- Remove the drain plug -arrow- on the front coolant hose and drain the coolant.

Fig 6: Identifying Drain Plug -Arrow- On Front Coolant Hose
GWWA19-10517Courtesy of AUDI OF AMERICA, LLC

-- Remove the drain plug -arrow- on the Map Controlled Engine Cooling Thermostat -F265- and drain the coolant.

Fig 7: Identifying Drain Plug -Arrow- On Map Controlled Engine Cooling Thermostat -F265-
GWWA19-11379Courtesy of AUDI OF AMERICA, LLC

-- Lift the clamp -1-, loosen the clamp -2- and remove the coolant hoses from the radiator.

Fig 8: Identifying Clamp -1-, Clamp -2-
GWWA19-11053Courtesy of AUDI OF AMERICA, LLC

Vehicles with Hydraulic Power Steering

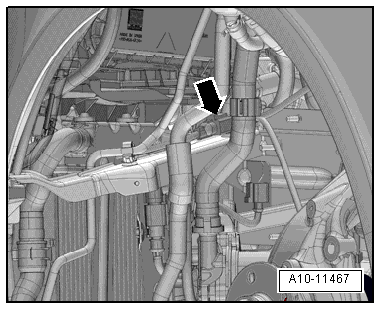

Fig 9: Disconnecting Connector -Arrow-
GWWA10-11467Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -arrow- from the power steering.

-- Place the Used Oil Collection and Extraction Unit:SMN372500  under the separating point.

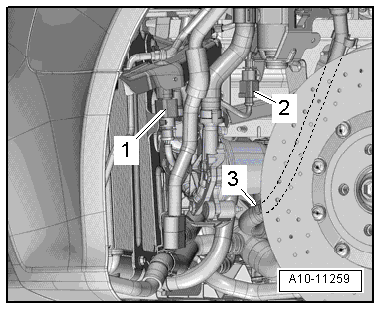

Fig 10: Removing Power Steering Hydraulic Fluid Hose -3-
GWWA10-11259Courtesy of AUDI OF AMERICA, LLC

-- Remove the power steering hydraulic fluid hose -3-.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122  .

Continuation for All Vehicles

-- Disconnect the connector -1- from the Secondary Air Injection Pump Motor 2 -V189- and free up the electric wire.

-- Disconnect the connector -2- from the Brake System Vacuum Pump -V192-.

NOTE:

Follow the rules for clean working conditions when working on the S tronic transmission. .

Fig 11: Identifying ATF Pipe Clamp Nut
GWWA37-11023Courtesy of AUDI OF AMERICA, LLC

-- Place the Used Oil Collection and Extraction Unit:SMN372500  under the separating point.

-- Remove the clamp -1- and disconnect the ATF pipe.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set:VAS6122  .

NOTE:

Ignore item -2-.

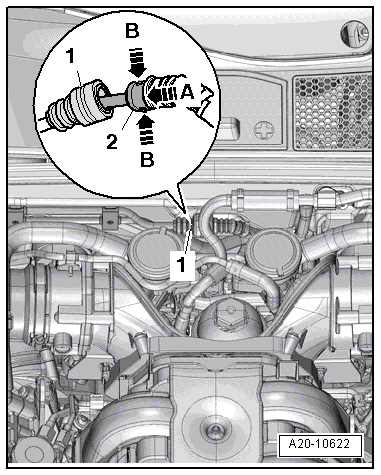

Fig 12: Pushing Hose Coupling -2- Downward -Arrow A-, Then Press Release Buttons -Arrow B-
GWWA20-10622Courtesy of AUDI OF AMERICA, LLC
WARNING:

Risk of injury from fuel.

  • To reduce fuel pressure, lay cloths around connecting point before opening fuel system and carefully loosen.
CAUTION:

Danger of defects caused by dirt.

-- Free up the fuel line on the plenum chamber bulkhead.

-- Disconnect the fuel line by first folding the boot -1- downward.

-- Push the hose coupling -2- downward -arrow A-, then press the release buttons -arrows B-.

-- Remove the hose coupling with the release buttons pressed.

-- Remove the vacuum hoses -1 and 2-.

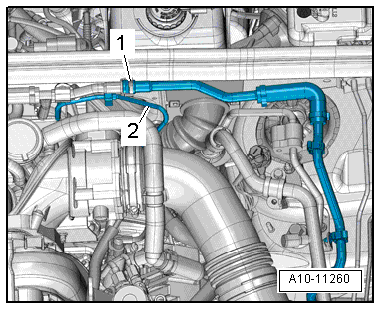

Fig 13: Identifying Vacuum Hoses -1 And 2-
GWWA10-11260Courtesy of AUDI OF AMERICA, LLC

-- Disconnect brake booster vacuum hose -2-.

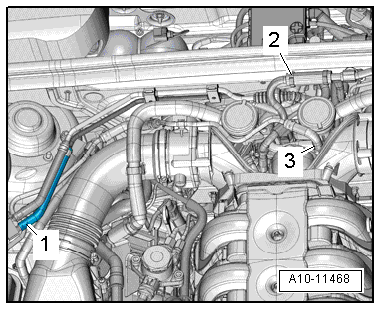

Fig 14: Identifying Coolant Line -3-, Brake Booster Vacuum Hose -2- & Line -1-
GWWA10-11468Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant line -3-, free it up and move it to the side.

-- Remove the line -1- from the Evaporative Emission (EVAP) canister and place it on the plenum chamber bulkhead.

-- Remove the lock carrier cover. Refer to FRONT BUMPER .

Fig 15: Identifying Bolts -Arrows- And Pull Air Guide -1- Off Left And Right Air Filter Housing
GWWA63-10589Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and pull the air guide -1- off the left and right air filter housing.

Fig 16: Pulling Air Guide Off Air Filter Housing
GWWA24-10805Courtesy of AUDI OF AMERICA, LLC

-- Free up the crankcase ventilation hose -2- on the air guide pipe.

Fig 17: Identifying Clamps -Arrows- And Air Guide Pipe
GWWA24-10806Courtesy of AUDI OF AMERICA, LLC

Crankcase Ventilation with a Detachable Hose

-- Remove the crankcase ventilation hose -1- from the air guide pipe by pressing the release tabs.

-- Loosen the clamps -arrows- and remove the air guide pipe.

-- Repeat the procedure on the other side of the vehicle.
