Oil Pan and Strainer: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the collector cover.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct (Rear). < refer to REMOVAL , Air Intake Duct.>
Remove the air intake boot.

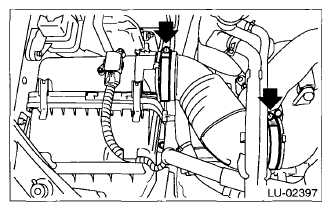

Fig 2: Locating Air Intake Boot
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. < refer to REMOVAL , Intercooler.>
Remove the pitching stopper.

Fig 3: Locating Pitching Stopper And Mounting Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator upper brackets.

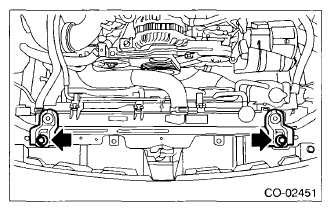

Fig 4: Locating Radiator Upper Brackets Mounting Screws
Courtesy of SUBARU OF AMERICA, INC.
Support the engine with a lifting device and wire ropes.

Fig 5: Lifting Engine Using Lifting Device
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
CAUTION: When lifting up the vehicle, raise up wire ropes at the same time.
Remove the under cover. < refer to REMOVAL , Front Under Cover.>
Drain the engine oil. < refer to REPLACEMENT , Engine Oil.>
Remove the front exhaust pipe. < refer to REMOVAL , Front Exhaust Pipe.>
Remove the nuts which secure the engine mounting to the front crossmember.

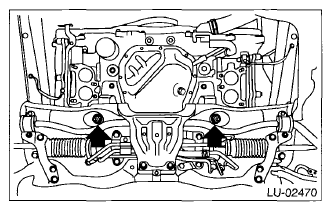

Fig 6: Locating Front Crossmember Mounting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure oil pan on cylinder block with the engine raised up.
Insert an oil pan cutter blade between cylinder block-to-oil pan clearance and remove the oil pan.
CAUTION: Do not use a screwdriver or similar tool in place of oil pan cutter.
Remove the oil strainer.
Remove the baffle plate.

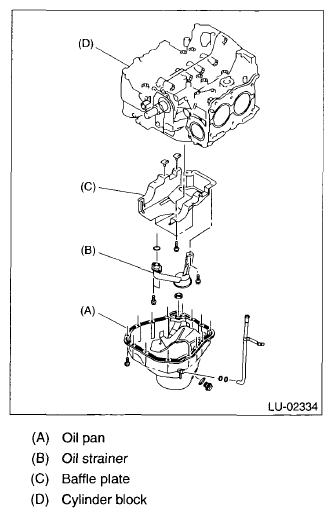

Fig 7: Identifying Oil Pan, Oil Strainer, Baffle Plate And Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.
