Drive Pinion Shaft Assembly: Removal

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission assembly from the vehicle. < Ref. to REMOVAL , Manual Transmission Assembly. >
  2. Remove the transfer case together with the extension case assembly. < Ref. to REMOVAL , Transfer Case and Extension Case Assembly. >
  3. Remove the transmission case. < Ref. to REMOVAL , Transmission Case. >
  4. Remove the drive pinion shaft assembly.
    NOTE: Use a hammer handle, etc. to remove if too tight.

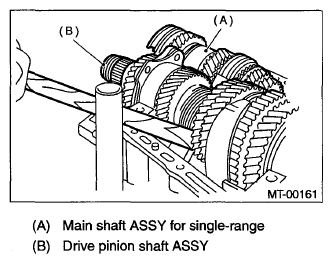

    Fig 1: Removing Drive Pinion Shaft Assembly
    G07666042Courtesy of SUBARU OF AMERICA, INC.
