Rear Lid, Removing And Installing, Sedan: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

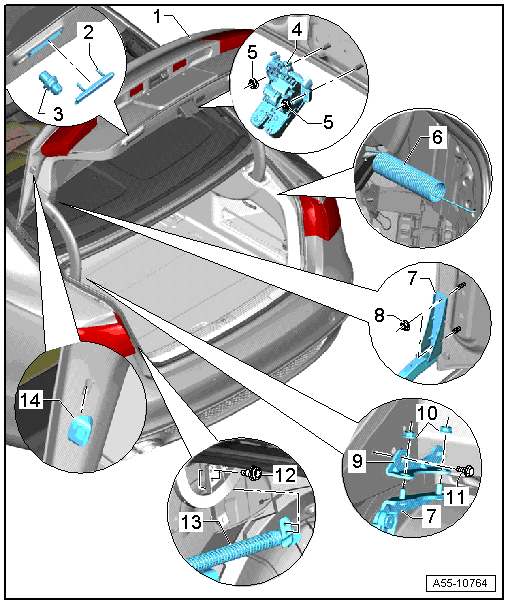

- Rear Lid
- A second technician will be required during removal and installation to support and to hold the rear lid.
- RemovingNOTE:
Mark the position of the rear lid on the rear lid hinge with a felt-tip pen before removing.
-- Remove the rear lid trim panel. Refer to REAR DOOR TRIM PANEL, REMOVING AND INSTALLING
-- Disconnect the wires on the connectors and pull them out of the rear lid.
-- Remove the nuts on the rear lid side and then remove the rear lid.
- Install in reverse order of removal.
- The springs -6- must be engaged before installing the rear lid.
- Adjusting:
-- Adjust the front height and the position of the hood lengthwise using the hood hinge.
-- Adjust the height of the back of the rear lid by adjusting the rear lid latch.
-- Align the hood so it is centered according to the gap dimensions. Refer to REAR LID, ADJUSTING .
-- Adjust the stop buffer.
- Rear Lid Seal, Removing and Installing. Refer to REAR LID SEAL, REPLACING SEDAN .
- If the vehicle has a rearview camera, the Rearview Camera -R189- must be recalibrated. .
- For vehicles with a peripheral camera, the Rear Peripheral Camera -R246- must be recalibrated. .
- Stop Strip
- Adjusting Buffer
- Rear Lid Latch
- Nut
- Spring
- Lid Hinge
- Nut
- 21 Nm
- Bracket
- Nut
- 21 Nm
- Bolt
- 21 Nm
- Bolt
- 21 Nm
- Rear Lid Motor 1 -V444-
- Side Stop
