Rear Lid Seal, Replacing Sedan

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

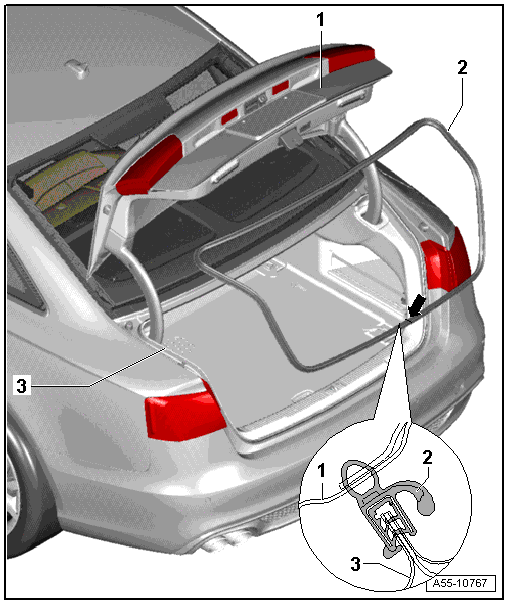

GWWA55-10767Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid
  2. Rear Lid Seal

    -- To remove, remove seal from body flange.

    NOTE:

    Clean the body flange before installing a new seal.

    -- When installing, align the seal with the butt joint -arrow- with the marking in the center of the vehicle.

    -- Beginning at the butt joint, press the seal all around onto the body flange.
