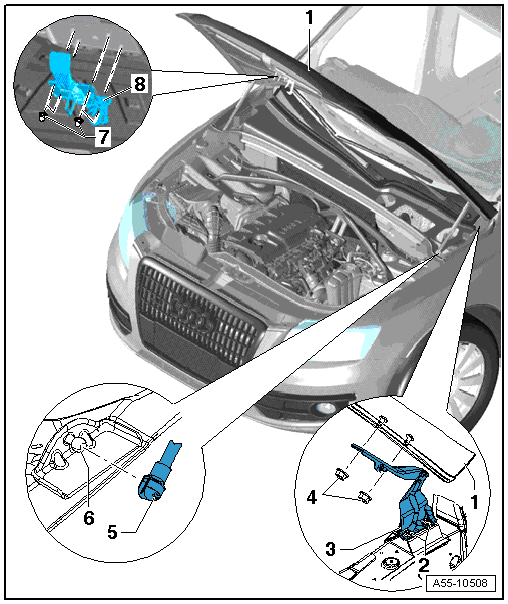

Overview - Hood
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Hood
- A second technician is needed to support and hold the hood during removal and installation.
- Removing:
-- Remove the gas-filled strut from the hood. Refer to OVERVIEW - GAS-FILLED STRUT .
-- Remove the nuts -4- from the upper hood hinge.
-- Remove the hood.
- Install in reverse order of removal.
- Adjusting:
-- Center the hood between the fenders.
-- Adjust the height of the hood over the lower part of the hood lock.
-- Adjust the gap between the hood and the fenders using the stop buffers.
- Bolts
- 21 Nm
- Hood Hinge
- For removal and installation, the hood must be removed or supported securely.
- Removing:
-- Install the gas-filled strut. Refer to OVERVIEW - GAS-FILLED STRUT .
-- Remove the bolts -2- and nuts -4-.
- Install in reverse order of removal.
- Nuts
- 21 Nm
- Gas-Filled Strut
- Removing and installing. Refer to OVERVIEW - GAS-FILLED STRUT .
- Install with tube end of strut at body.
- Ball Pin
- 21 Nm
- Nuts
- 8 Nm
- Hook
