Part II
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
Turbocharger Part I, refer to Part I .
Turbocharger Part III, refer to Part III .

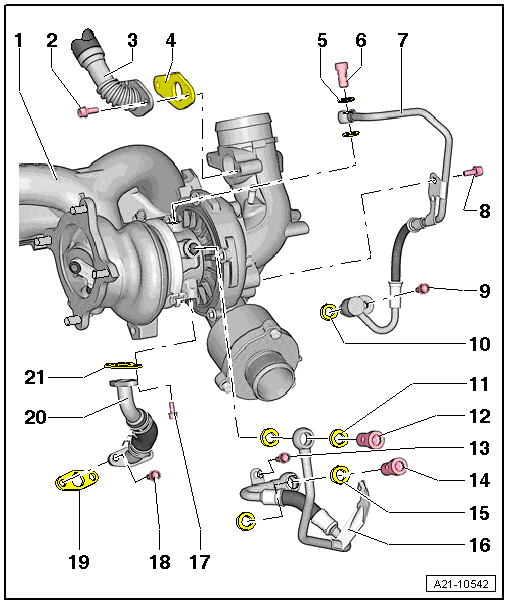

- Turbocharger
- Can only be replaced with exhaust manifold and vacuum diaphragm.
- Removing and installing, refer to TURBOCHARGER, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Line for Crankcase Ventilation
- Seal
- Replacing
- Seal
- Replacing
- Bolt
- 30 Nm
- Oil Supply Line
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-Ring
- Replacing
- Seal
- Replacing
- Bolt
- 35 Nm
- Bolt
- 9 Nm
- Bolt
- 35 Nm
- Seal
- Replacing
- Coolant Supply Line
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Seal
- Replacing
- Oil Return Line
- Seal
- Replacing
