Rear Lid Tail Lamp, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

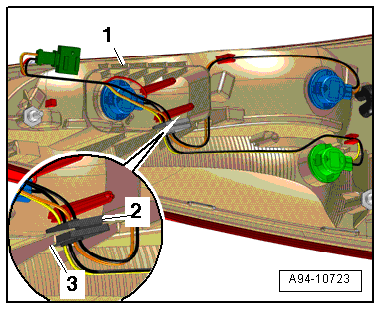

Fig 1: Installing Light Housing

Courtesy of AUDI OF AMERICA, LLC

Tightening specification, refer to OVERVIEW - REAR LID TAIL LAMPS .

Install In Reverse Order Of Removal. Note The Following:

The cable grommet -2- must sit correctly in its mount -3-.
The self-adhesive seal -1- between the rear lid and the tail lamp housing must seal correctly.

-- Tighten the nuts for the tail lamp, refer to Figure.

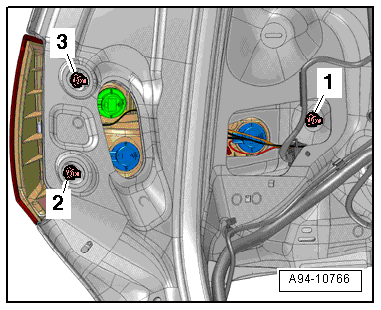

Fig 2: Identifying Rear Lid Lamp Nuts

Courtesy of AUDI OF AMERICA, LLC
