Overview - Rear Lid Tail Lamps

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

LED tail lamps have LED bulbs and are integrated in the tail lamps. The LEDs cannot be replaced; the entire tail lamp must be replaced.

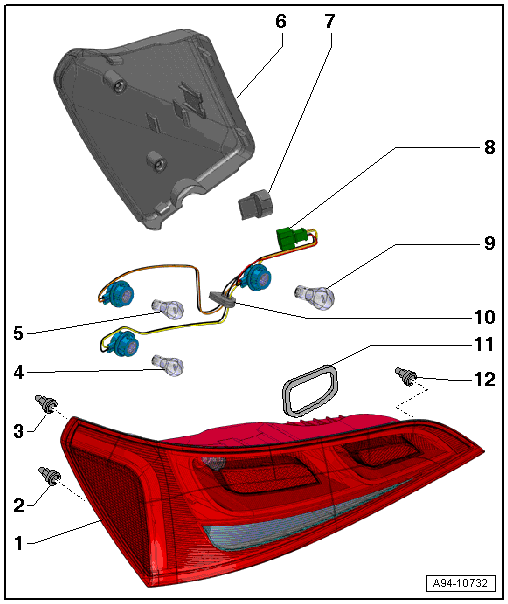

Fig 1: Exploded View Of Rear Lid Tail Lamps

Courtesy of AUDI OF AMERICA, LLC

Tail Lamp
- In rear lid
- Removing and installing, refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING
Nut
- Tightening specification and sequence, refer to Fig 2
Nut
- Tightening specification and sequence, refer to Fig 2
Rear Turn Signal Bulb
- Left Rear Turn Signal Bulb -M6-
- Right Rear Turn Signal Bulb -M8-
- 12 V, 21 W
- Bulb, replacing, refer to OUTER BULB HOLDER, REMOVING AND INSTALLING .
Brake and Tail Lamp Bulb
- Left Brake/Tail Lamp Bulb -M21-
- Right Brake/Tail Lamp Bulb -M22-
- 12 V, 21 W
- Bulb, replacing, refer to OUTER BULB HOLDER, REMOVING AND INSTALLING .
Cap
- Removing and installing, refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING
Key
- For removing and installing the bulb sockets
Central Connector
- For lamp sockets
Brake and Tail Lamp Bulb
- Left Brake/Tail Lamp Bulb 2 -M58-
- Right Brake/Tail Lamp Bulb 2 -M59-
- 12 V, 21 W
- Bulb, replacing, refer to INNER BULB HOLDER, REMOVING AND INSTALLING .
Wiring Bushing
Seal
- Self-adhesive
- Replace if damaged.
Nut
- Tightening specification and sequence, refer to Fig 2

Fig 2: Identifying Rear Lid Lamp Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts for the tail lamps to 3.5 Nm and in the sequence -1, 2 and 3-.
