Overview - Valve Train, 1.8L Engine: Notes

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

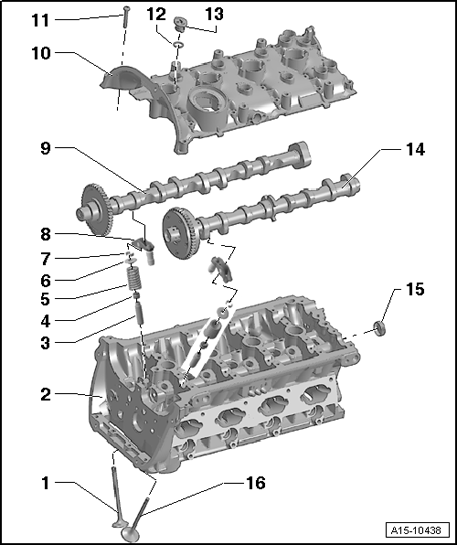

Fig 1: Valve Train Assembly Overview (1.8L Engine)

Courtesy of AUDI OF AMERICA, LLC

Exhaust Valve
- Do not rework, only lapping is permitted
- Valve Dimensions. Refer to Valve Guides, Checking .
- Valve Guides, Checking. Refer to Valve Guides, Checking .
Cylinder Head
Valve Guide
- Checking. Refer to Valve Guides, Checking .
Valve Stem Seal
- Replacing. Refer to Valve Stem Seals, Removing and Installing .
Valve Spring
Valve Spring Retainer
Valve Retainers
Hydraulic Lifter
- With roller rocker lever
- Do not interchange
- Lubricate the contact surface
Exhaust Camshaft
- Removing and installing. Refer to Camshaft, Removing and Installing, 1.8L Engine
- Check the radial clearance using Plastigauge® (roller rocker lever removed)
- Radial clearance: 0.024 to 0.066 mm
- Run-out: maximum 0.04 mm
Cylinder Head Cover
- With integrated camshaft bearings
- Removing and installing. Refer to Camshaft, Removing and Installing, 1.8L Engine
- Clean the sealing surface, reworking is not permitted.
- Remove old sealant residue.
- Only replace together with the cylinder head
Bolt
- Tightening specification and sequence. Refer to Cylinder Head Cover - Tightening Specifications and Sequence .
- Always replace after removing
- Loosening. Refer to Cylinder Head Cover, Loosening .
O-ring
- Always replace after removing
- Lubricate with engine oil
Plug
Intake Camshaft
- Removing and installing. Refer to Camshaft, Removing and Installing, 1.8L Engine
- Check the radial clearance using Plastigauge® (roller rocker lever removed)
- Radial clearance: 0.024 to 0.066 mm
- Run-out: maximum 0.04 mm
Cap
- Always replace after removing
- Removing: with the cylinder head cover installed, pierce through one side of the cover with an awl and pry it out
- Installing .
Intake Valve
- Do not rework, only lapping is permitted
- Valve Dimensions. Refer to Valve Guides, Checking .
- Valve Guides, Checking. Refer to Valve Guides, Checking .
