Overview - Cylinder Head: Notes
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

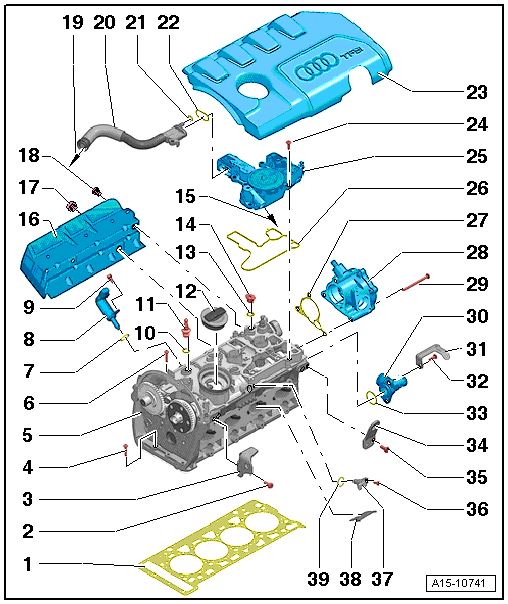

- Cylinder Head Gasket
- Replacing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Installed position: the part number faces the cylinder head
- Change the coolant and engine oil after replacing
- Bolt
- 25 Nm
- Engine Lifting Eye
- Bolt
- Replace after removing.
- Loosening. Refer to Loosening the cylinder head .
- Tightening specification and sequence. Refer to Cylinder Head - Tightening Specification and Sequence .
- Cylinder Head
- Removing and Installing. Refer to CYLINDER HEAD, REMOVING AND INSTALLING .
- Checking for distortion. Refer to Cylinder Head, Checking for Distortion .
- Change the coolant and engine oil after replacing
- Do not rework the upper sealing surface
- Only replace together with the cylinder head cover
- CHECK VALVE, REMOVING AND INSTALLING .
- Bolt
- Replace after removing.
- Loosening. Refer to Loosening the cylinder head .
- Tightening specification and sequence. Refer to Cylinder Head - Tightening Specification and Sequence .
- O-Ring
- Only 2.0L Engine
- Check for damage
- No replacement part: included in the cam adjustment actuator delivery package
- Coat with engine oil
- Cam Adjustment Actuator
- Only 2.0L Engine
- Removing and Installing. Refer to CAM ADJUSTMENT ACTUATOR, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Only 2.0L Engine
- O-Ring
- Replace after removing.
- Lubricate with engine oil
- Plugs
- 5 Nm
- with ball head for the engine cover
- Cap
- With seal
- O-Ring
- Replace after removing.
- Lubricate with engine oil
- Plugs
- to Intake Manifold
- Heat Shield
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- To the Intake Manifold/Turbocharger
- Bleed Pipe
- O-Ring
- No replacement part
- Seal
- No replacement part
- Engine Cover
- Bolt
- Tightening specification and sequence. Refer to Oil Separator on Cylinder Head Cover - Tightening Specification and Sequence .
- Oil Separator
- On the cylinder head cover
- Overview. Refer to OIL SEPARATOR, REMOVING AND INSTALLING .
- Seal
- Replace if damaged
- Seal
- Replace if damaged
- Vacuum Pump
- Removing and installing. Refer to Brake system vacuum pump V192, removing and installing
- Bolt
- Connection
- Retaining Plate
- Bolt
- 9 Nm
- O-Ring
- Replace after removing.
- Coat with coolant
- Engine Lifting Eye
- Bolt
- 25 Nm
- Bolt
- Tightening specification: 9 Nm
- Camshaft Position Sensor - G40-
- Overview. Refer to OVERVIEW - IGNITION SYSTEM .
- Partition Plate
- O-Ring
- Replace after removing.
- Lubricate with engine oil
