Cylinder Head - Tightening Specification and Sequence

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Replace the bolts that were tightened with an additional turn after removing them.

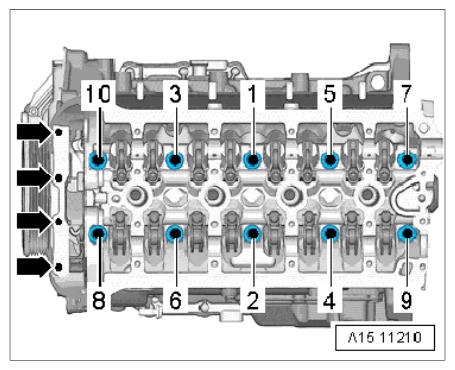

Fig 1: Cylinder Head Screws Tightening Sequence
Courtesy of AUDI OF AMERICA, LLC

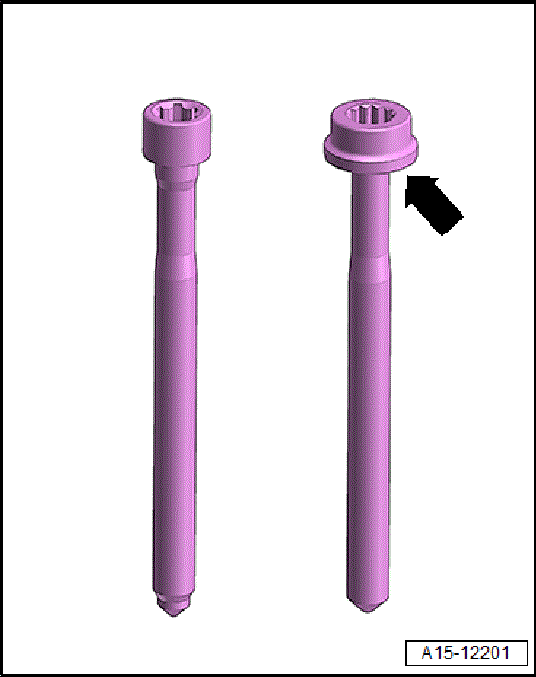

Bolt differences:
Bolt without collar
Bolt with collar -arrow-

Courtesy of

Tighten the bolts in the steps shown in the sequence:

CYLINDER HEAD TIGHTENING SEQUENCE

Step	Bolts	Tightening specification/additional turn
1.	-1 through 10-	Install by hand all the way
2.	-1 through 10-	"Without collar" 40 Nm "with collar" 50 Nm, difference. Refer to Cylinder Head - Tightening Specification and Sequence .
3	-1 through 10-	90° additional turn
4.	-1 through 10-	90° additional turn
5.	-arrows-	8 Nm
6.	-arrows-	90° additional turn
