Bearing Bracket, Removing and Installing: Installing
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

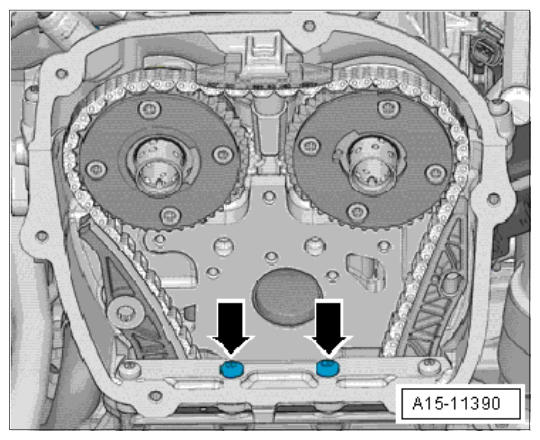

- Install the bolts -arrows- and tighten them. Tightening specifications: 8 Nm + 90° additional turn.

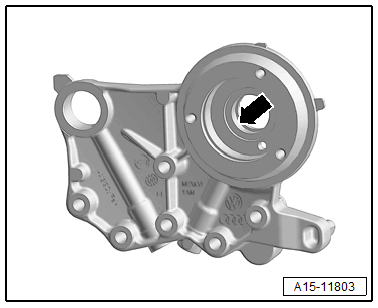

- Lubricate the hole -arrow- with engine oil.
- Carefully mount the bearing bracket without tilting it.
- Attach the bearing mount and install the bolts -arrows- all the way by hand.
- Depending on the version, remove either the -T40011- or the -T40267-.
- Tighten the bearing bracket bolts -arrows-. Refer to Overview - Camshaft Timing Chains .
Installation is performed in reverse order of removal, noting the following:
- Install the upper timing chain cover. Refer to UPPER TIMING CHAIN COVER, REMOVING AND INSTALLING .
- There may be additional procedures depending on the model. Refer to Bearing Bracket, Removing and Installing .
