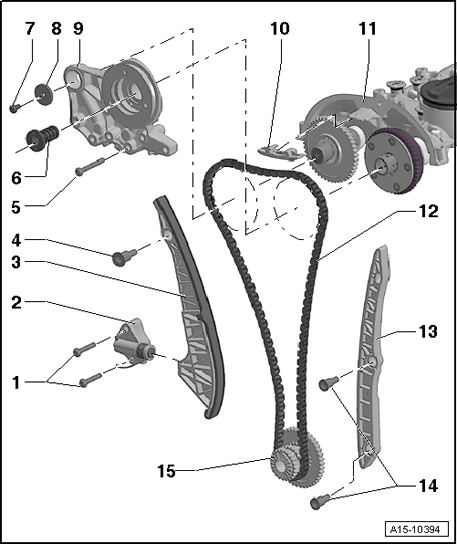

Overview - Camshaft Timing Chains
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2015 Audi A4, and 2014 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Chain Tensioner
- Is under tension
- Remove the Locking Pin - T40011- before removing
- Timing Chain Tensioning Rail
- Guide Pin
- 20 Nm
- Bolt
- 9 Nm
- Control Valve
- 35 Nm
- Left-hand thread
- Depending on the version, remove with either the Central Valve Assembly Tool - T10352- or Central Valve Assembly Tool - T10352/1A-
- Bolt
- Tightening Specifications and Sequence. Refer to Bearing Bracket - Tightening Specification and Sequence .
- Always replace after removing
- Washer
- Bearing Bracket
- Removing and installing. Refer to Bearing Bracket, Removing and Installing
- Camshaft Timing Chain Guide Rail
- Camshaft Housing
- Camshaft Timing Chain
- Before removing, mark the running direction with paint
- Removing and installing. Refer to Camshaft Timing Chain, Removing and Installing
- Camshaft Timing Chain Guide Rail
- Guide Pin
- 20 Nm
- Three Stage Chain Sprocket
- Crankshaft
- Installation position. Refer to Three Stage Chain Sprocket - Installed Position .
