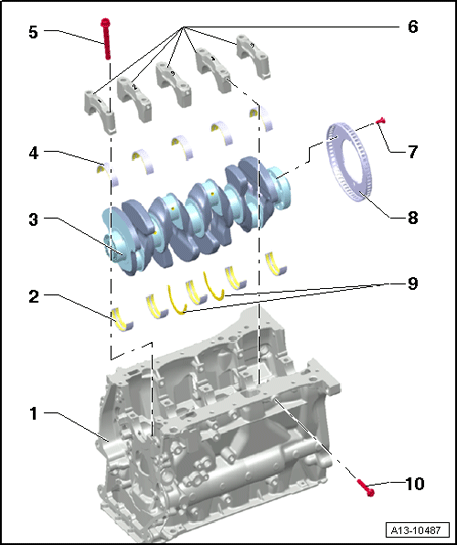

Overview - Crankshaft: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
- Cylinder Block
- Cylinder Block Bearing Shell
- With oil groove
- Replace any worn bearing shells
- Crankshaft bearing shells identification (classification). Refer to Main Bearing Shells Allocation .
- Lubricate with engine oil
- Crankshaft
- For assembly work, secure the engine on the Engine and Transmission Holder - VAS6095A-. Refer to ENGINE, SECURING ON ENGINE AND TRANSMISSION HOLDER .
- After removing, set it aside so that the sensor wheel -item 8- (See Fig 1) is not rested on and becomes damaged
- If the crankshaft is being replaced, then the bearing shells must be reallocated to the bearing cap. Refer to Main Bearing Shells Allocation .
- Axial play, measuring. Refer to Crankshaft, Measuring Axial Clearance .
- Radial play, measuring. Refer to Crankshaft, Measuring Radial Clearance .
- Crankshaft dimensions. Refer to Crankshaft, Measuring Radial Clearance .
- Bearing Shell for Bearing Cap
- Without oil groove
- Replace any worn bearing shells
- Crankshaft bearing shells identification (classification). Refer to Main Bearing Shells Allocation .
- Lubricate with engine oil
- Bolt
- Always replace after removing
- Use the old bolts for radial clearance measurement
- Tightening Specifications and Sequence. Refer to Crankshaft - Tightening Specifications and Sequence .
- Bearing Cap
- Bearing cap 1: belt pulley side
- Bearing caps 2, 3 and 4 also installed on the side
- Retaining tabs for cylinder block/bearing cap bearing shells must lie above one another
- Mark the installation position for reinstallation. Refer to Crankshaft Bearing Cap Identification .
- Bolt
- 10 Nm + 90°
- Always replace after removing
- Replace the sensor wheel -item 8- (See Fig 1) every time the bolts are loosened. Refer to Sensor Wheel, Removing and Installing .
- Sensor Wheel
- For Engine Speed Sensor - G28-
- Only possible to install in one position - holes are offset -
- Replace the sensor wheel every time the bolts -item 7- (See Fig 1) are loosened
- Removing and installing. Refer to Sensor Wheel, Removing and Installing
- After replacing, perform an "adaptation". Refer to Vehicle Diagnostic Tester, Guided Functions
- Thrust Washers
- For bearing 3
- Lubricate with engine oil
- Bolt
- Tightening Specifications and Sequence. Refer to Crankshaft - Tightening Specifications and Sequence .
- Always replace after removing
