Rear lights in rear fender - Sedan, assembly

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

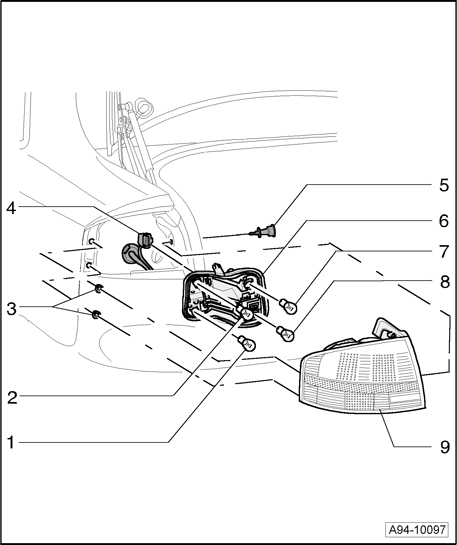

Fig 1: Rear Lights In Rear Fender - Sedan, Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Turn signal lamp bulb

12 V, 21 W

2 - Brake/taillamp bulb

12 V, 21 W

3 - Clip nut

4 - Electrical connector

5 - Bolt - 3.5 Nm

With hex socket (17 mm)

6 - Bulb holder

Removing and installing → Rear light/bulb carrier in rear fender - Sedan, removing and installing

7 - Taillamp bulb

12 V, 21 W

8 - Backup lamp bulb

12 V, 21 W

9 - Housing

Removing and installing → Rear light/bulb carrier in rear fender - Sedan, removing and installing
