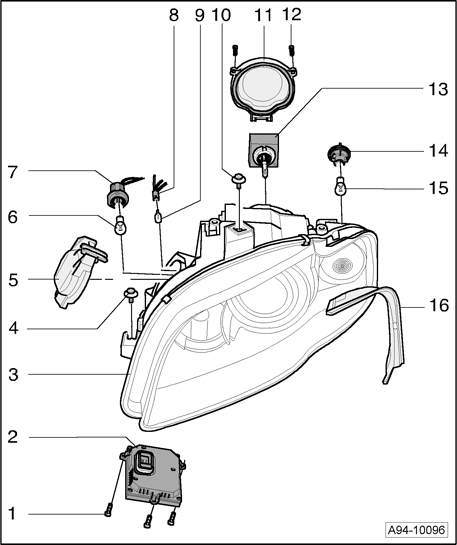

Headlamps with High Intensity Gas Discharge (HID) "Bi-Xenon" Lamps, assembly
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- After performing any repairs or service that could affect headlight aim, check/adjust aim.
- Headlamp without adaptive light function (cornering lights) is illustrated.
1 - Screw - 1.5 Nm
2 - High intensity gas discharge (HID) lamp control module
- Left High-intensity Gas Discharge (HID) Lamp Control Module J343
- Right High-intensity Gas Discharge (HID) Lamp Control Module J344
- Removing and installing → High Intensity Gas Discharge (HID) Lamp Control Module J343 / J344, removing and installing
3 - Headlamp housing
4 - Screw - 4.5 Nm
5 - Housing cover
- For parking/daytime running lamps
6 - Daytime running lamp (DRL) bulb
- 12 V, 21 W
- Replacing → Daytime Running Lamp (DRL) bulb, replacing
7 - Bulb holder
- For daytime running lamp (DRL) bulb
8 - Bulb holder
- For parking lamps
9 - Left Parking Lamp M1 , Right Parking Lamp M3 - bulb
- 12 V, 5 W
- Replacing → Parking Lamp M1 / M3 - bulb, replacing
10 - Screw - 4.5 Nm
11 - Housing cover
- For low beam headlamps
12 - Screw - 1.5 Nm
13 - High intensity gas discharge (HID) lamp
- 35 W, D1S
- Replacing → HID headlamp bulb, replacing
14 - Bulb holder
- For turn signal bulb
15 - Left Front Turn Signal Lamp M5 , Right Front Turn Signal Lamp M7 - bulb
- 12 V, 21 W
- Orange
- Replacing → Front Turn Signal Lamp M5 / M7 - bulb, replacing
16 - Trim cover
