Seat cover and padding for rear seat bench, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

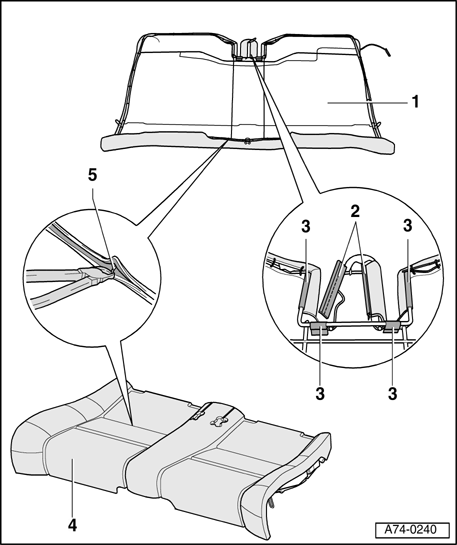

Fig 1: Seat Cover And Padding For Rear Seat Bench, Assembly Overview

GW00021254

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Padding

2 - Securing strips (2x)

3 - Securing strips (4x)

4 - Seat cover

Removing

Remove rear bench seat → Rear seat bench, assembly overview .
Push securing strips - 2 - (2x) apart in opposite directions.
Pry out securing strips - 3 - (4x).
Cut through staples - 5 -.

Fold cover - 4 - up.
Remove cover -4- upward and cut through staples - 5 -.
Remove padding - 1 -.

Installing

Replace staples - 5 -.
Install cover and padding in reverse order to removal.

5 - Staples
