Removing cover and padding from backrest frame
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

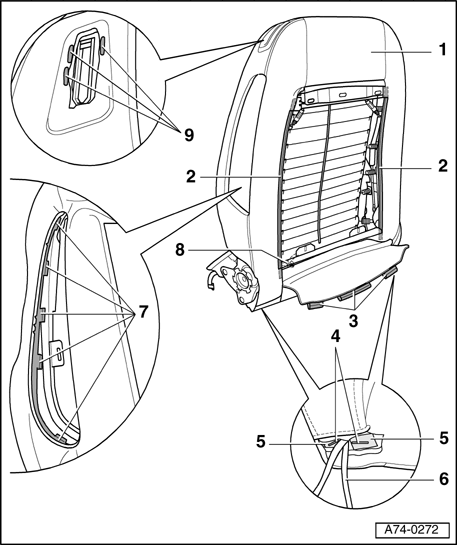

1 - Cover and padding
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove backrest → Front seat backrest, assembly overview .
- Remove head restraints → Head restraint with slide-in locking mechanism, removing and installing .
- Remove head restraint guides → Head restraint guides, removing and installing .
- Remove easy-entry facility handle → Easy-entry facility handle, removing and installing .
- Remove easy-entry facility trim → Removing and installing easy-entry facility trim .
- Remove backrest panel → Backrest cover panel, removing and installing .
- Pry out staples - 4 - (4x) on left and right.
- Remove velcro strips - 5 - (4x) on left and right.
- Open cable tie - 8 -.
- Remove heated backrest cable - 6 -.
- Disengage piping on side - 2 - (2x).
- Pry out piping at bottom - 3 - (3x).
- Remove side airbag → Side airbag (sports seat, standard seat), removing and installing .
- Pry out plastic tabs -7- (5x).
- Pry out staples - 9 - (3x).
- Remove padding with cover.
- Installing
- Installation is in reverse order of removal.
2 - Side piping (2x)
3 - Bottom piping (3x)
4 - Staples (4x) on left and right
- Commercially available.
- Only use upholstery stapler.
5 - Velcro strips (4x) on left and right
6 - Heated backrest cable
7 - Plastic tabs (5x)
8 - Cable tie
9 - Staples (3x)
- Commercially available.
- Only use upholstery stapler.
