Detaching cover and padding from seat pan
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

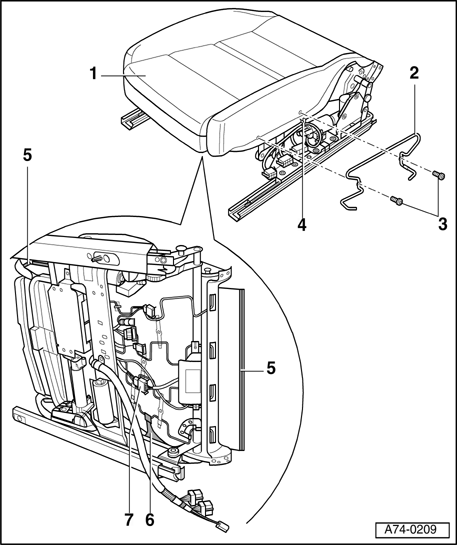

1 - Cover and padding
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove side trim, outboard side → Side trim on sill panel side, removing and installing .
- Remove side trim, inboard side → Side trim, inboard side, assembly overview .
- Remove backrest → Front seat backrest, assembly overview .
- Remove bolts - 3 - (2x).
- Remove clip - 2 -.
- Disconnect seat heating connector - 7 -.
- Release clip - 4 -.
- Pry out surrounding securing strips - 5 -.
- Disengage tab - 6 -.
- Remove cover and padding - 1 -.
- On vehicles with ISOFIX holder and new cover fabric - 1 - , cut slots in fabric cover at location of ISOFIX holder.
2 - Bracket
3 - Bolts (2x)
4 - Clip
5 - Surround securing strips
6 - Tab
7 - Seat heating connector
