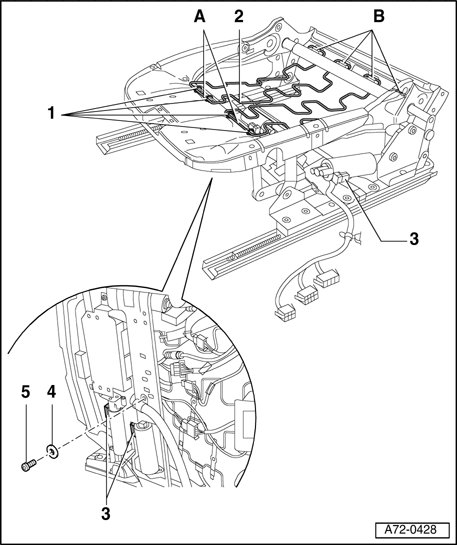

Seat pan spring pad with wiring harness, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Cable ties (4x)
2 - Spring pad with wiring harness
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove side trim, outboard side → Side trim on sill panel side, removing and installing .
- Remove side trim, inboard side → Side trim, inboard side, assembly overview .
- Remove backrest → Front seat backrest, assembly overview .
- Remove cover and padding from seat pan → Seat pan cover and padding (sports seat), assembly overview .
- Remove cable tie - 1 - (4x).
- Disengage spring pad - 2 - at positions - A - (2x).
- Disengage spring pad - 2 - at positions - B - (4x).
- Place seat to side.
- Disconnect connectors - 3 - (3x).
- Remove bolt - 5 -.
- Remove spring pad with wiring harness - 2 -.
- Installing
- Installation is in reverse order of removal.
3 - Connector (3x)
4 - Shim
5 - Bolt
