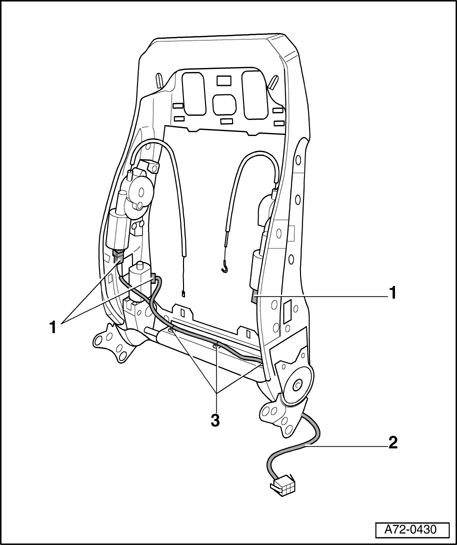

Seat backrest wiring harness, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Connector (3x)
2 - Wiring harness
- Removing
- Remove seat → Seat, assembly overview .
- Remove side trim, outboard side → Side trim on sill panel side, removing and installing .
- Remove side trim, inboard side → Side trim, inboard side, assembly overview .
- Remove backrest → Front seat backrest, assembly overview .
- Remove backrest cover panel → Backrest cover panel, removing and installing .
- Remove cover and padding from backrest → Backrest cover and padding (sports seat, standard seat), removing and installing .
- Detach cable ties - 3 - (3x).
- Disconnect connectors - 1 - (3x).
- Remove wiring harness - 2 -.
- Installing
- Installation is in reverse order of removal.
3 - Cable ties (3x)
