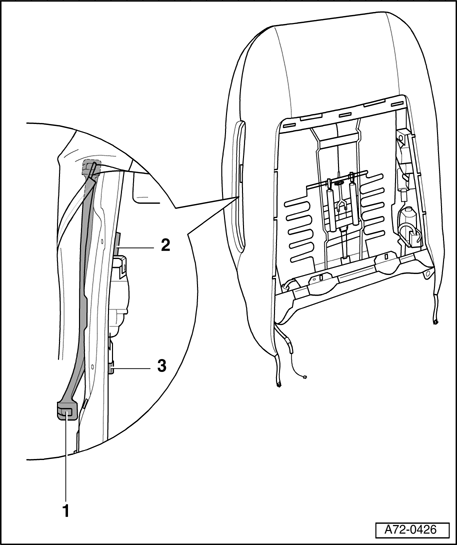

Guide for side airbag, assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Guide for side airbag
- Removing
- Remove seat → Seat, assembly overview .
- Attach fixture for seat repair VAS 6136 to engine and transmission holder VAS 6095.
- Attach front seat to fixture for seat repair VAS 6136.
- Remove backrest cover panel → Backrest cover panel, removing and installing .
- Remove side airbag → Side airbag (electric seat), assembly overview .
- Press clip - 3 - together and remove clip - 3 -.
- Pry out the retainer - 2 - from inside.
- Detach the side airbag guide - 1 -.
- Installing
- Installation is in reverse order of removal.
2 - Retainer
3 - Clip
