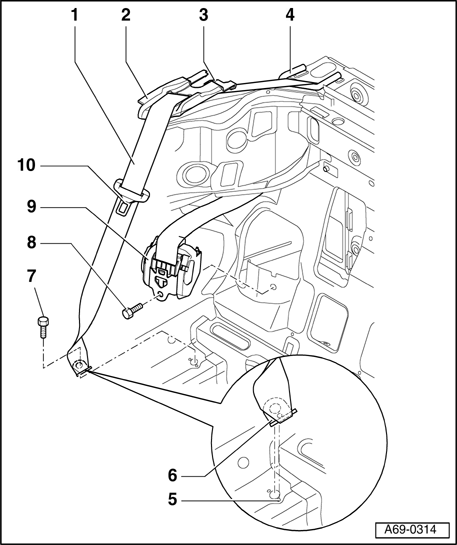

Rear 3-point seat belt with belt tensioner, assembly overview: Notes
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Belt
2 - Belt guide
3 - Connecting bar
4 - Idler roller
5 - Locating projection
6 - Anchorage point: Outer floor panel
7 - Bolt
- Tightening torque 55 Nm
8 - Bolt
- Tightening torque 55 Nm
9 - Belt reel/belt tensioner
- Removing
CAUTION:
Observe the necessary measures when disconnecting battery. →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT, CABRIOLET
- Disconnect battery.
- Remove rear bench seat → Rear seat bench, assembly overview .
- Remove rear seat backrest → Rear seat backrest, assembly overview .
- Open convertible top compartment.
- Remove bolt - 8 -.
- Disconnect belt tensioner connector Disconnect connector for rear seat belt tensioner .
- Remove belt reel - 9 -.
- Remove bolt - 7 -.
- Unclip front belt guide - 2 - and detach - 2 -.
- Open connecting bar - 3 - on belt guide - 2 -.
- Pull belt - 1 - out of belt guide - 2 - and Idler roller - 4 -.
- Installing
- Plug in connector to belt tensioner Disconnect connector for rear seat belt tensioner .
- Screw belt reel - 9 - with bolt - 8 -.
- Feed belt - 1 - into idler roller - 4 -.
- Feed belt - 1 - into belt guide - 2 - with connecting bar - 3 - open.
- Close connecting bar - 3 -.
- Attach belt guide - 2 - at rear and press on belt guide - 2 - at front.
- Make sure belt guide - 2 - is engaged at front in side trim.
- Make sure outer floor panel anchorage point - 6 - is engaged in locating projection - 5 -.
- Screw outer floor panel anchorage point - 6 - with bolt - 7 -.
- Install rear seat belt in reverse order of removal.
10 - Latch plate
