Mobile phone holder in center console, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

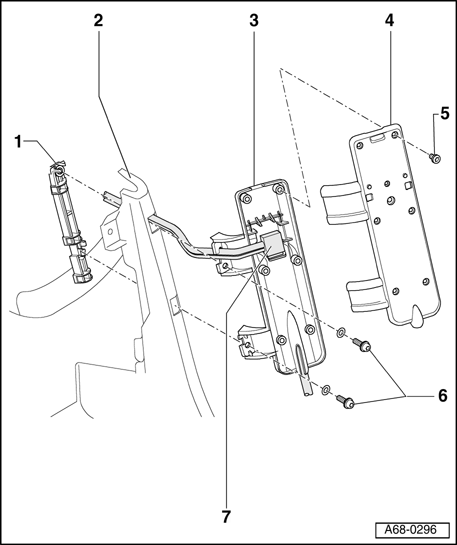

Fig 1: Mobile Phone Holder In Center Console, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Threaded moulding

Engaged in center console from rear

2 - Center console

With mounting holes for base plate
Retrofitting mounting holes → Making mounting holes for mobile phone holder on center console

3 - Mounting plate

4 - Base plate

For mobile phone handset holder

5 - Bolts (6x)

Tightening torque 0.5 Nm

6 - Bolts (2x)

Tightening torque 1.5 Nm

7 - Connector

NOTE:

Ensure correct seating of connector.
