Making mounting holes for mobile phone holder on center console
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
When supplied as a spare part, center console has no openings or mounting holes for mobile phone holder. Openings must be created.
- Remove center console → Center console, assembly overview .

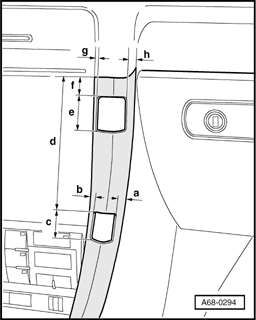

- Produce mounting holes of the following dimensions:
a - 10 mm
b - 6 mm
c - 20 mm
d - 100 mm
e - 31 mm
f - 8 mm
g - 5 mm
h - 9 mm
- Engage threaded molding in center console from rear and fasten the mobile phone holder with a torque of 1.5 Nm
NOTE:
- After installation check that glove compartment lid will open.
