Bracket for telephone handset in center console, assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

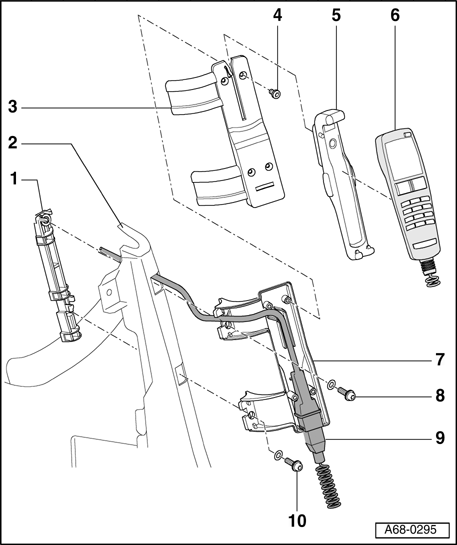

Fig 1: Bracket For Telephone Handset In Center Console, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Threaded molding

Engaged in center console from rear

2 - Center console

With mounting holes for base plate
Retrofitting mounting holes → Mounting holes for telephone handset bracket in center console, fabricating

3 - Mounting plate

For handset holder

4 - Bolts (4x)

Tightening torque 0.5 Nm

5 - Receiver holder

6 - Telephone handset R37

7 - Base plate

8 - Bolt

Tightening torque 1.5 Nm

9 - Connector

NOTE:

Ensure correct seating of connector.

10 - Bolt

Tightening torque 1.5 Nm
