Cargo tray, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

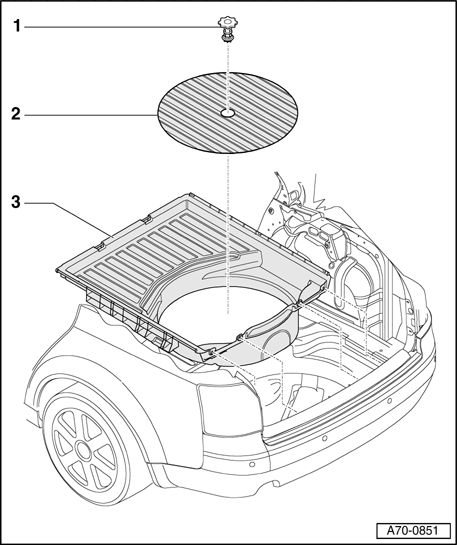

Fig 1: Cargo Tray Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Threaded pins

Tighten hand-screwed

2 - Cover

For tool kit

3 - Cargo tray

Removal:

Remove storage area floor → Storage area floor, removing and installing .
Remove rear cross panel trim → Rear cross panel trim, removing and installing .
Remove right and left side trim in luggage compartment → Side luggage compartment trim .
Remove cargo tray.

Installing:

Installation is reverse of removal.
