Rear cross panel trim, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Torque Wrench V.A.G 1410

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1410

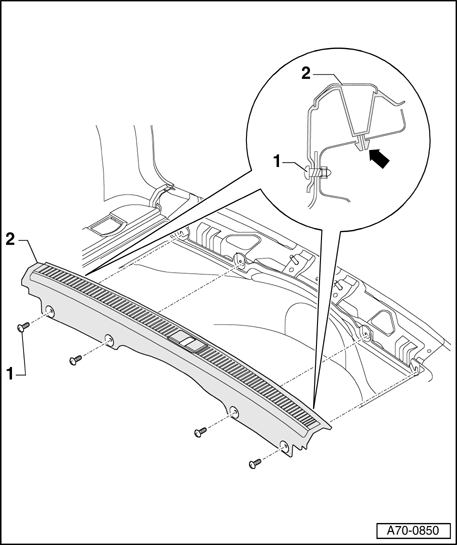

Fig 2: Rear Cross Panel Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Screws (4x)

Tightening torque 5 Nm

2 - Rear cross panel trim

Removal:

Open luggage compartment floor lid.
Remove screws - 1 - (Qty. 4).
Carefully remove rear cross panel trim - 2 - from locking pins - arrows -.

Installing:

Installation is reverse of removal. Observe the following when doing so:

Rear lid rubber must lie over rear cross panel trim.
Tighten screws to 5 Nm.
