C-pillar trim, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Torque Wrench V.A.G 1783

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1783

CAUTION: Note safety precautions for working on airbags → Airbag system, general safety precautions and side curtain airbags → Side curtain airbag, additional safety precautions .

NOTE:

Replace self-locking screws.

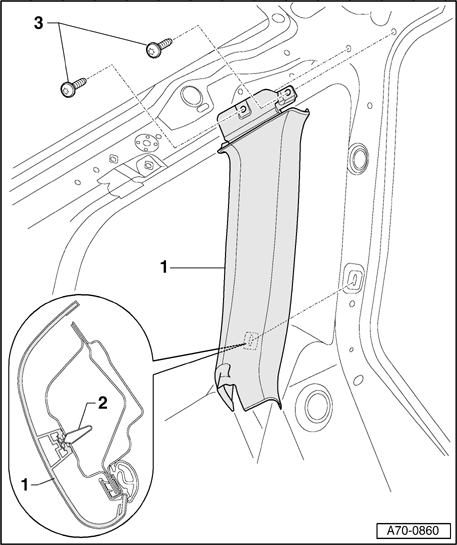

Fig 2: C-Pillar Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - C-pillar trim

Removal:

Remove rear seat side panel → Rear seat side padding, removing and installing or rear side airbag → Rear side airbag (foldable backrest), removing and installing .
Remove luggage compartment side trim → Side luggage compartment trim .
Remove cover above rear doors → Trim above rear door, removing and installing .
Remove rear belt guide → Right and left rear belt guide piece, removing and installing .

Remove bolts for head-level airbag in rear area → Side curtain airbag (Avant), removing and installing .
Remove bolts - 3 -.
Remove trim - 1 -, unclip spring clip - 2 - to do so.

Installing:

Installation is reverse of removal. Observe the following when doing so:

Secure head-level airbag with new bolts → Side curtain airbag (Avant), removing and installing .
Sealing rubber in rear side door must be laid over C-pillar trim.

CAUTION: Ensure trim is held securely.

2 - Spring clamp

3 - Screws, (2x)

Tightening torque 3.5 Nm
