Right and left rear belt guide piece, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

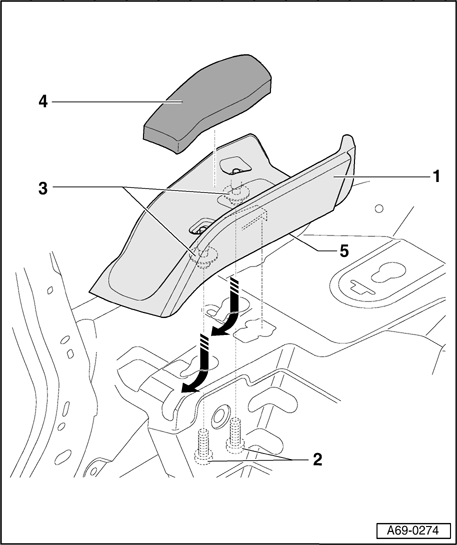

1 - Rear belt guide piece
- Removal:
- Remove side upholstery → Rear seat side padding, removing and installing .
- Remove C-pillar trim → C-pillar trim, removing and installing .
- Remove rear 3-point seat belt → Third rear three-point seat belt (folding rear seat backrest), removing and installing .
- If present, remove foam piece - 4 - from lower part of guide.
- Remove two Phillips-head bolts - 2 - from below.
- Remove belt guide piece - 1 -.
- Installing:
- When installing belt guide piece - 1 -, ensure both washers - 3 - lie below belt guide piece.
- Press belt guide piece into retainer so retaining tabs - 5 - engage audibly.
- Re-install Phillips-head bolts - 2 -.
- Lay foam piece - 4 - back into belt guide piece - 1 -.
- Re-install all additional removed parts.
2 - Phillips-head screws (Qty. 2)
3 - Washers (Qty. 2)
4 - Foam piece
- Depending on version
5 - Retaining tab
