Rear panel sill, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Torque Wrench V.A.G 1783

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Torque wrench V.A.G 1783

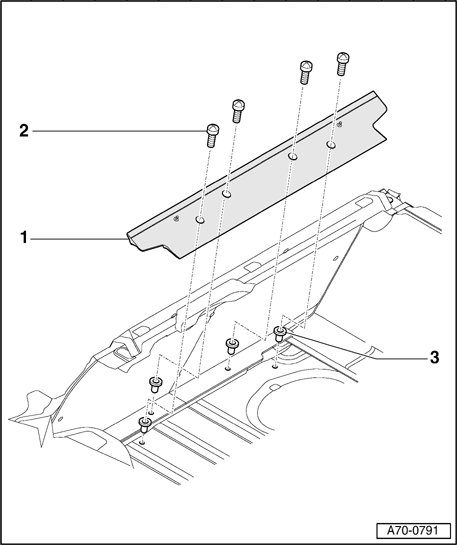

Fig 2: Rear Panel Sill Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear panel sill

Removal:

Remove rear panel trim → Rear panel trim, removing and installing .
Remove four bolts - 2 -.
Remove rear panel sill - 1 - upward.

Installing:

Check whether the four expanding nuts - 3 - are seated properly and replace them if necessary.
Position rear panel sill with four holes on expanding nuts - 3 -.
Thread in four bolts - 2 - through holes into expanding nuts - 3 -.

2 - Screws (4x)

Tightening torque 3 Nm

3 - Expanding nuts (4x)
