Rear panel trim, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

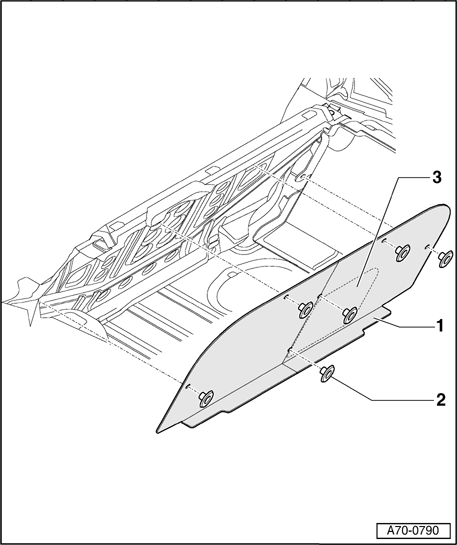

1 - Rear bulkhead trim panel
- Removal:
- If installed, remove ski sack → Ski sack, removing and installing (folding rear seat backrest) .
- Remove luggage compartment floor covering.
- Remove clips - 2 - (5x in version with ski sack, 6x in version without ski sack).
- Remove rear panel trim - 1 -.
- Installing:
Installation is reverse of removal.
2 - Clips (Qty. 5 or 6)
3 - Ski bag (optional)
