Lower A-pillar trim, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

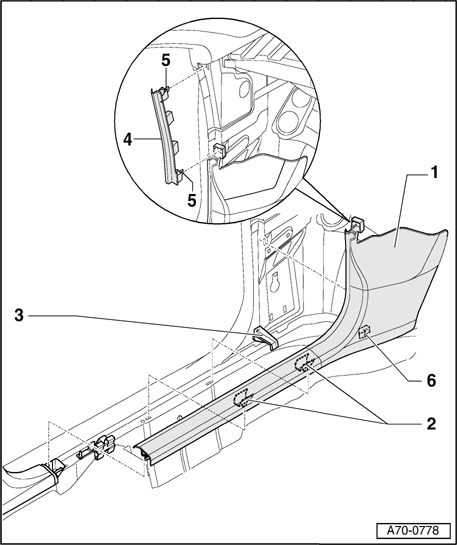

Fig 1: Lower A-Pillar Trim Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Lower A-pillar trim panel

Removal:

Unclip two clips - 5 - and remove A-pillar intermediate piece - 4 -.
Unclip lower A-pillar trim - 1 - from intermediate piece - 4 -.
Unclip two clips - 2 - at lower A-pillar trim - 1 -.
Pull hook - 6 - from bracket - 3 -.

Installing:

When installing, ensure that the door rubber is pulled cleanly over the lower A-pillar trim.

Further installation is performed in the reverse order of removal.

2 - Clamps (Qty. 2)

3 - Bracket

4 - A-pillar intermediate piece

5 - Clamps (Qty. 2)

6 - Hook
