Bumper crossmember (up to model year 2005), removing and installing: Notes

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

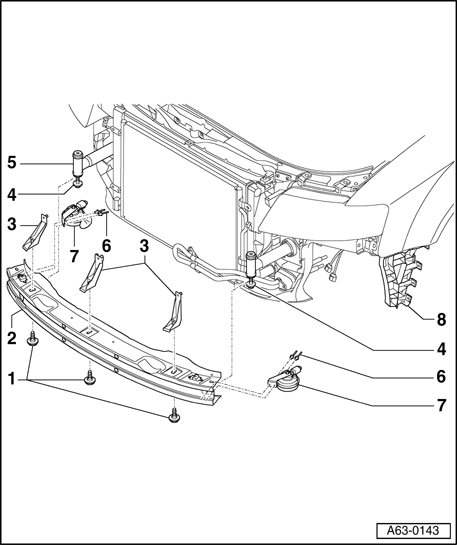

Fig 1: Bumper Crossmember (Up To Model Year 2005) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Bolts

3 Nm

2 - Cross member

Mount on impact absorber → Bumper crossmember to impact absorber mount .
Bumper cover, removing → Front bumper (up to model year 2005), removing and installing .
Disconnect electrical connectors to signal horn.

3 - Supports

4 - Screw

26 Nm

5 - Impact absorber

Removing → Impact absorber, removing and installing .

6 - Pop rivet

7 - Signal horn

To remove, drill out hollow rivet heads and drive out rivet shafts.

8 - Guide piece

Removing and installing Guide piece, removing and installing .
