Hydraulic system - assembly overview

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

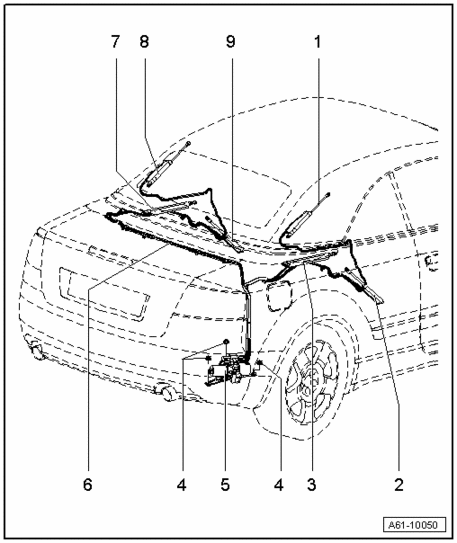

Fig 1: Hydraulic System - Assembly Overview

GW00020624

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Right bracket drive motor cylinder

Removing → Hydraulic cylinder, removing and installing .

2 - Right main drive motor cylinder

Removing → Hydraulic cylinder, removing and installing .

3 - Right convertible top compartment cover drive motor cylinder

Removing → Hydraulic cylinder, removing and installing .

4 - Nut

3x
10 Nm

5 - Hydraulic pump with valve block

Removing → Hydraulic unit (hydraulic pump), removing and installing .

6 - Hydraulic lines

7 - Left convertible top compartment cover drive motor cylinder

Removing → Hydraulic cylinder, removing and installing .

8 - Left bracket drive motor cylinder

Removing → Hydraulic cylinder, removing and installing .

9 - Left main drive motor cylinder

Removing → Hydraulic cylinder, removing and installing .

Fig 2: Hydraulic System, Filling And Bleeding

GW00020625

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Oil filler screw

Pfeil - 2 Nm

Fig 3: Hydraulic Pump Housing

GW00020626

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Hydraulic pump housing

Arrow - 6 Nm

Fig 4: Solenoid Valves

GW00020627

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Solenoid valves

6 Nm
22 Nm

Fig 5: Connecting Plate

GW00020628

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Connecting plate

Arrow - 10 Nm
