Attachments - assembly overview
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

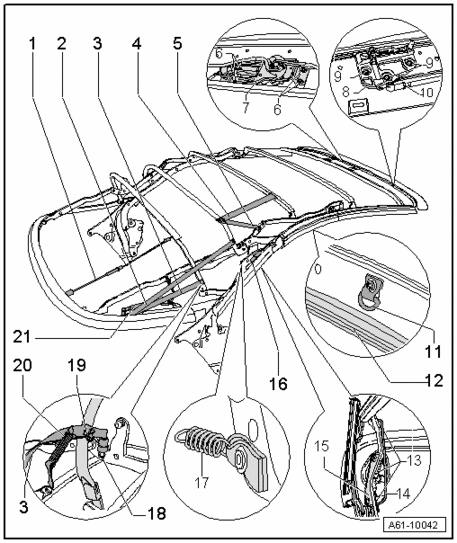

1 - Guide cable - rear window
- Removing Attachments, removing and installing .
2 - Bracket strap - rail "4"
- Removing Attachments, removing and installing .
3 - Bracket strap - rail "5"
- Removing Attachments, removing and installing .
4 - Rubber strap for rail "3" and "4"
- Removing Attachments, removing and installing .
5 - Center brace strap - rail "4"
- Removing Attachments, removing and installing .
6 - Convertible Top Locking Motor V223 bolts
- 10 Nm
7 - Convertible Top Locking Motor V223 , (Convertible Top Lock Switch (open) F294 , Convertible Top Lock Switch (closed) F295)
8 - Convertible top lock
- Removing → Convertible top lock, removing and installing .
- Adjusting → Convertible top locks, checking and adjusting .
9 - Convertible top lock bolts
- 9 Nm
10 - Nut
- 6 Nm
11 - Cable eyelet- headliner
- Removing Attachments, removing and installing .
12 - Plastic profile
- Only on first generation vehicles.
- Removing Attachments, removing and installing .
13 - Screw
- 4 Nm
14 - Tensioning wire - headliner
- Removing Attachments, removing and installing .
15 - Tensioning element - headliner
- Removing Attachments, removing and installing .
16 - Convertible top cover tensioning cable
- Removing Attachments, removing and installing .
17 - Cable spring - headliner (lengthwise)
- Removing Attachments, removing and installing .
18 - Cable spring - headliner (across)
- Removing Attachments, removing and installing .
19 - Cable eyelet- headliner
- Removing Attachments, removing and installing .
20 - Center brace spring - rail "5"
- Removing Attachments, removing and installing .
21 - Bracket insulation element
- Removing Attachments, removing and installing .
