Door lock (from model year 2006), removing and installing

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Removing

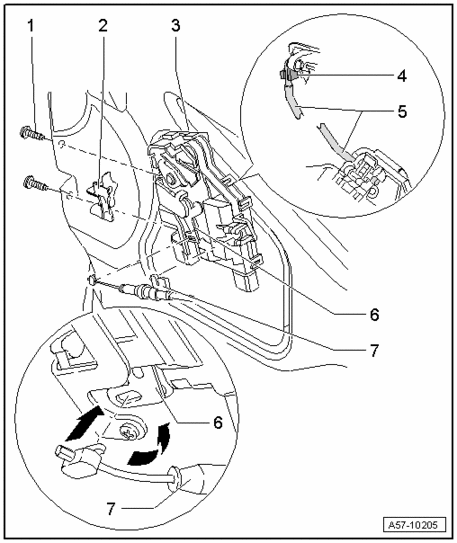

Fig 1: Door Lock (From Model Year 2006) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove door trim →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
.
Remove door lock cover cap.
Remove window regulator rear brace → Window regulator - assembly overview .
Disconnect electrical harness connector at door lock.

Disengage operating rod to door handle - 5 - at upper clip - 4 -.

NOTE:

If door lock is replaced, operating rod on lock must be adjusted → Door lock operating rod (from model year 2006), adjusting .

Remove bolts - 1 - and remove door lock - 3 -.

Fig 2: Raising Locking Pin Slightly, Rotating Guide 90° And Removing It Sideways From Door Lock

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Raise locking pin - 1 - slightly, rotate guide - 2 - 90° and remove it sideways from door lock - 3 -.
Disengage door inside release mechanism cable at release lever.

Installing

Installation is reverse of removal.

Tightening torques → Door lock (from model year 2006) - assembly overview .
