Roof joint strip, removing and installing (Avant)
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

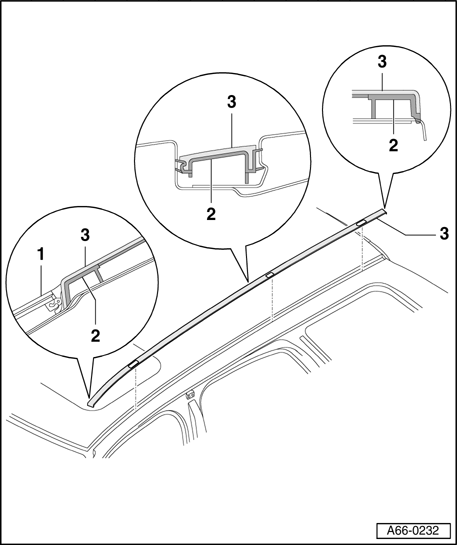

1 - Windshield
2 - Seal profile
- Coat with lubricant before installing.
3 - Roof joint strip
- Removing:
- Removing roof rail → Roof rail, removing and installing .
- Carefully pry out of roof joint starting from rear.
- Installing:
- Install seal profile - 2 - onto roof joint strip.
- Coat seal profile with lubricant (e.g. soap).
- Slide on roof joint strip starting at windshield - 3 - below gap cover and press completely into roof joint by sections from front toward rear.
