Roof rail, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

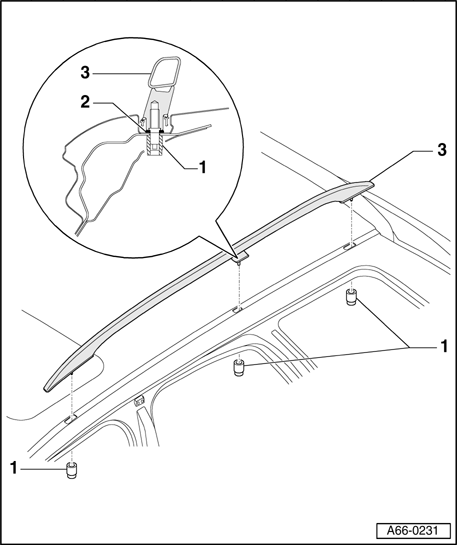

1 - Special nut
- 18 Nm
2 - Gaskets with glued seal
- Check for proper seating
3 - Roof rail
- Removing:
- Remove upper A-pillar trim. →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- Remove D-pillar trim. →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- Remove trim above rear door. →
- 70 - INTERIOR TRIM
- 70 - INTERIOR TRIM for BODY INTERIOR - CABRIOLET
- Unthread nuts - 1 - and remove roof rail.
- Installing:
- Check for correct seating of seals on threaded points of roof rail.
- Tighten nuts - 1 - to 18 Nm.
