Lid lock and handle mechanism, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

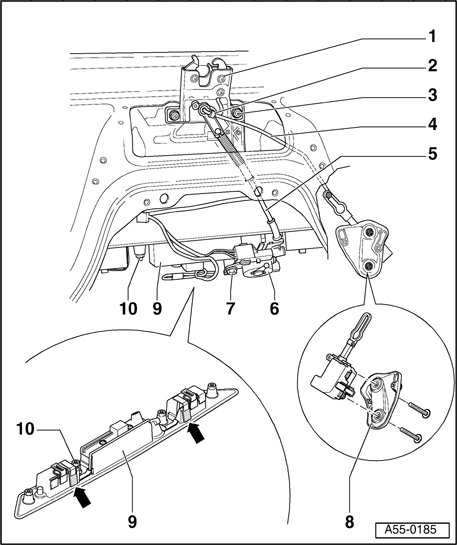

1 - Rear lid lock
- To remove, unclip operating rod from swivelling bush and disengage.
- Unscrew hex nuts - 3 - and remove rear lid lock.
2 - Swivelling bushing
- After installing rear lid lock, engage operating rod and secure.
3 - Nut
- 8 Nm
4 - Operating rod
5 - Bowden cable
6 - Lock cylinder
- Removing:
- Disconnect electrical harness connectors.
- Disengage Bowden cable - 6 - from lock cylinder.
- Remove combination bolt - 7 -.
- Twist lock cylinder 90°.
- Remove lock cylinder from handle mechanism.
7 - Combination bolt
- 8 Nm
8 - Engine
- Removing and installing → Remote control motor, removing and installing (country versions)
9 - Grip piece
- Removing:
- Rear lid trim removed.
- Lock cylinder removed.
- Remove hex head collar nuts - 10 -.
- Press in catches - arrows -.
- Remove grip piece.
10 - Hex head collar nut
- 8 Nm
