Vehicles with 8-cylinder gasoline engine with chain drive

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

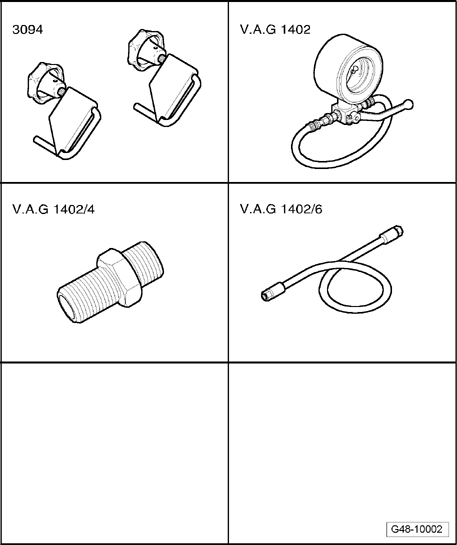

Fig 1: Identifying Special Tools - Vehicles With 8-Cylinder Gasoline Engine With Chain Drive

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Hose clamp 3094
Power steering test unit V.A.G 1402
Adapter V.A.G 1402/2
Hose from adapter kit V.A.G 1402/6 (qty. 2)

Special tools, testers and auxiliary items required

Fig 2: Identifying Drip Tray V.A.G 1306

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Drip tray V.A.G 1306

Test requirements:

Ribbed belt/ribbed belt tension OK
System has no leaks
Hoses/lines not kinked or restricted

Checking

Fig 3: Identifying Hose Clamps 3094

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Clamp off suction and return line with hose clamps up to 25 mm dia. 3094.
Remove noise insulation →
- 50 BODY, FRONT
- 50 - BODY - FRONT for BODY EXTERIOR - CABRIOLET

Fig 4: Identifying Connection Of Power Steering Test Unit V.A.G 1402

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pressure hose is not removed at power steering pump to check delivery pressure. Connection of Power steering test unit V.A.G 1402 takes place at line connection - arrow - at lower left of engine compartment.

Place drip pan V.A.G 1306 under separation point to collect escaping hydraulic oil.
Disconnect line connection - arrow -.

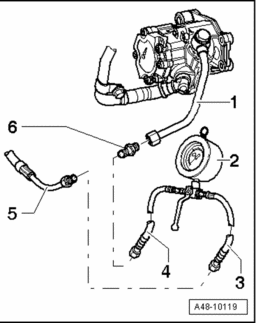

Fig 5: Installing Power Steering Test Unit V.A.G 1402

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install Power steering test unit V.A.G 1402 as shown in illustration.

1 - Pressure hose

2 - Adapter V.A.G 1402/4

3 - Pressure hose

4 - Hose from adapter set V.A.G 1402/6

5 - Pressure gauge V.A.G 1402

Remove Power steering test unit V.A.G 1402 from pressure hose.
Remove hose clamps up to 25 mm dia. 3094.

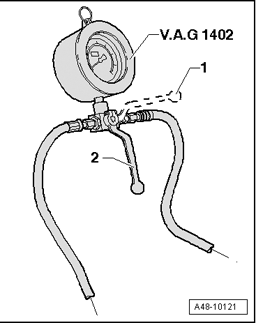

Fig 6: Ensuring Lever On Pressure Gauge Stands In Open/Closed Position

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Ensure lever on pressure gauge stands in the open position - 1 -.
Start engine without giving gas.
Turn steering wheel from lock to lock about 10 times.
Switch off engine and, if needed, top off hydraulic fluid in reservoir.

NOTE:

To avoid damage to pump, observe the following:
Pressure gauge shut-off valve must not remained closed longer than 10 seconds during this test.
Start engine without giving gas and run at idle.
Read pump pressure immediately after starting at idle speed (have it read by second technician, if necessary).
Because pressure falls over the course of the test, the highest pressure shown is the decisive measurement

Check delivery pressure.

Fig 7: Ensuring Lever On Pressure Gauge Stands In Open/Closed Position

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Start engine and close shut-off valve to the closed position - 2 - while engine is idling and read pressure (lever must face away from pressure hose). Do not perform measurement longer than 10 seconds.

Specification for delivery pressure: 123 to 130 bar

If pressure is not to specification, replace pump → Power steering pump (vehicles with 8-cylinder gasoline engine with chain drive), removing and installing .

Switch off engine.
Remove Power steering test unit V.A.G 1402.
Tighten connection for pressure hoses to 40 Nm.
Check power steering fluid level → Power steering fluid level, checking .

Check steering system for leaks → Steering system, checking for leaks .
Bleed steering system → Steering system, bleeding after reconstructing
Install noise insulation →
- 50 BODY, FRONT
- 50 - BODY - FRONT for BODY EXTERIOR - CABRIOLET
.
