Shift mechanism (from VIN 8E_6A156500), assembly overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Lubricate bearing areas and slide surfaces with polycarbamide grease G 052 142 A2 .

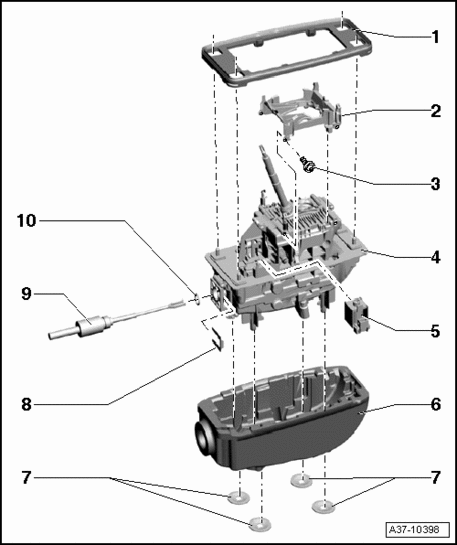

Fig 1: Shift Mechanism (From VIN 8E_6A156500), Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rubber seal

2 - Press tube

3 - Bolt, 2 Nm

Qty. 4

4 - Selector mechanism function unit

5 - Shift lock solenoid N110

→ Shift Lock Solenoid N110 (from VIN 8E_6A156500), removing and installing

6 - Noise insulation

Not installed on all vehicles

7 - Lock washers

Qty. 4, always replace
For securing sound insulation on selector mechanism function unit

8 - Retaining clip

Secures selector lever cable on selector mechanism function unit

9 - Selector lever cable

→ Selector lever cable (from VIN 8E_6A156500), removing and installing
Adjusting → Selector lever cable (from VIN 8E_6A156500), adjusting

10 - O-Ring

Always replace
