Locking lever (from VIN 8E_6A156500), removing and installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Overview

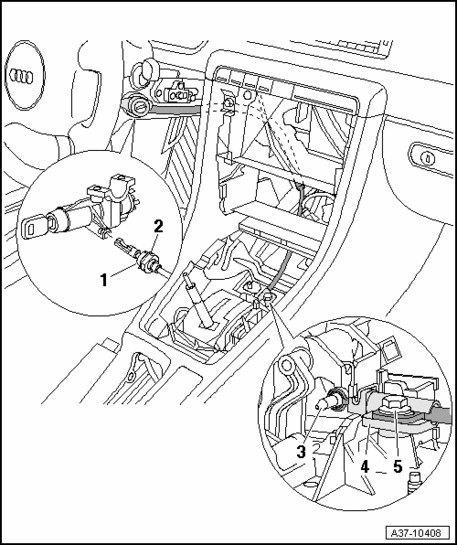

Fig 1: Locking Lever (From VIN 8E_6A156500), Removing And Installing Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Locking cable

2 - Retaining clip

3 - Locking cable eye pins

4 - Locking cable bracket

5 - Bolt, 10 Nm

For adjusting locking cable

Removing

NOTE:

Do not kink locking cable.

CAUTION: Observe procedures for disconnecting battery →

27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT, CABRIOLET

Disconnect Ground (GND) wire at battery.
Remove storage compartment on drivers side →
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for BODY INTERIOR - CABRIOLET
.
Remove steering column trim →
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for BODY INTERIOR - CABRIOLET
.
Remove A/C system operating unit → 87 AIR CONDITIONING .

Remove ashtray in center console →
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for BODY INTERIOR - CABRIOLET
.
Remove cover for shift mechanism → Shift mechanism cover (from VIN 8E_6A156500), removing and installing .
Turn ignition key into driving position "ignition on".
Place selector lever in position "P".

Fig 2: Lifting Retaining Clip From Interlock Lever And Pulling Locking Cable Out Of Ignition/Starter Switch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Lift retaining clip - 2 - from interlock lever and pull locking cable - 1 - out of ignition/starter switch.

Fig 3: Raising Retaining Tab And Removing Locking Lever

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Raise retaining tab - A - and remove locking lever in direction of - arrow - from locking cable eye pins.

Installing

Installation is in reverse order of removal, note the following:

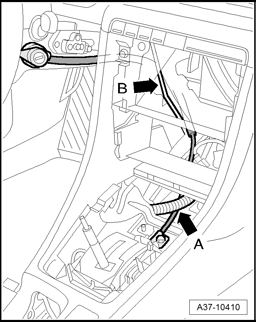

Fig 4: Routing Locking Cable Without Kinks Under Wiring Harness And Behind Instrument Panel Brace

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Route locking cable without kinks under wiring harness - arrow A - and behind instrument panel brace - arrow B -.
Turn ignition key into driving position "ignition on".

Fig 5: Lifting Retaining Clip From Interlock Lever And Pulling Locking Cable Out Of Ignition/Starter Switch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert locking cable - 1 - into ignition/starter switch.
Check interlock lever - 2 -.
Bring ignition/starter switch into locking position "ignition off".
Check whether selector lever is in position "P".

Fig 6: Raising Retaining Tab And Removing Locking Lever

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Slide locking cable in opposite in direction of - arrow - onto locking cable eye pins.

The retaining tab - A - must engage over locking cable

Adjust locking cable → Locking cable (from VIN 8E_6A156500), adjusting .
Observe procedures for connecting battery →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL for ELECTRICAL EQUIPMENT, CABRIOLET
.
