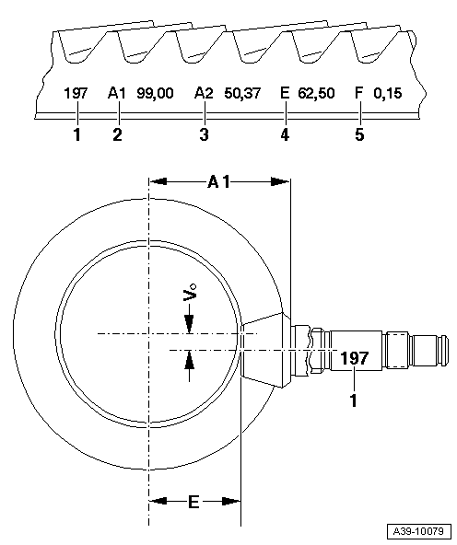

Adjustment and marking gear set, dimension "E" indicated
- Dimension - E - is the length for this gear seat that must be adjusted on the master gauge VW 385/30.
1 - Pairing number "197" for gearing set
2 - Dimension "A1" is dimension between ring gear axle and rear side of pinion face. This dimension is needed for shim " S 5 " and positioning of inner race/tapered roller bearing → Shim " S 5 " for positioning inner race/tapered ball bearing, redetermining .
3 - Dimension "A2" is not needed for adjusting gear set.
4 - Dimension "E" is the actual dimension between ring gear axle and drive pinion facing side in position of quietest running for this gear set; dimension "E" in this example = 62.50 mm. Dimension "E" is adjusted on the master gauge VW 385/30.
5 - Dimension "F" is not needed for adjusting gear set.
Vo - Hypoid offset

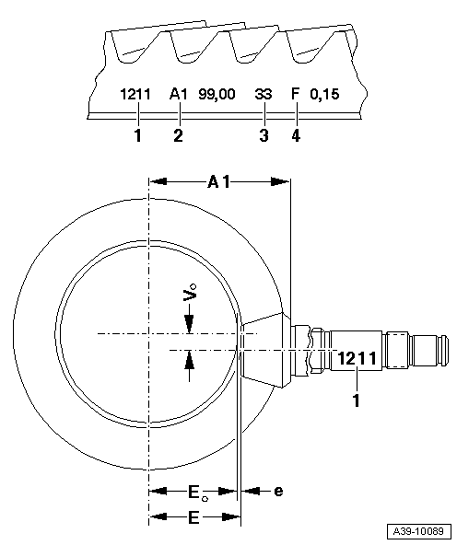

- That length that must be adjusted on the master gauge VW 385/30 is always 62.17 mm (= Eo - dimension) with this gear set
1 - Pairing number "1211" for gearing set
2 - Dimension "A1" is the dimension between ring gear axle and rear side of pinion face. This dimension is needed for the shim " S 5 " and positioning of inner race/tapered roller bearing → Shim " S 5 " for positioning inner race/tapered ball bearing, redetermining .
3 - Dimension "e" is based on the master gauge used on the test bench during production. Dimension "e" is always given in 1/100 mm. Example: "33" means "e" = 0.33 mm
4 - Dimension "F" is not always present, is not needed for adjusting gear set
Eo - Length of master gauge used on the test bench; dimension "Eo" = 62.17 mm.
E - Actual dimension between ring gear axis and face of drive pinion in position of quietest running for this gear set.
Vo - Hypoid offset
