Installation position of circlips
WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLKSWAGEN UNITED STATES, INC.

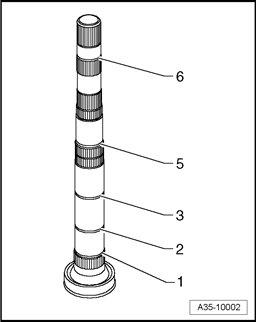

- Circlip - 1
- secures the 1st and 2nd gear synchronizing hub.
Identification: blue color
| Circlip thickness (mm) |
| 1.90 |
2.02 |
2.14 |
| 1.93 |
2.05 |
2.17 |
| 1.96 |
2.08 |
|
| 1.99 |
2.11 |
|
- Circlip - 2
- secures tapered roller bearing inner race.
| Circlip thickness (mm) |
| 3.50 |
- Circlip - 3
- secures thrust washer for reverse selector gear.
| Circlip thickness (mm) |
| 3.50 |
- Circlip - 4
- secures the 3rd gear wheel.
| Circlip thickness (mm) |
| 1.90 |
1.98 |
2.06 |
| 1.94 |
2.02 |
2.10 |
- Circlip - 5
- secures the 6th gear wheel.
| Circlip thickness (mm) |
| 1.90 |
2.02 |
2.14 |
| 1.93 |
2.05 |
2.17 |
| 1.96 |
2.08 |
2.20 |
| 1.99 |
2.11 |
|
- Determine circlips according to table.
