Clutch mechanism, servicing

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Follow steps required when disconnecting battery →
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL
- 27 BATTERY, STARTER, GENERATOR, CRUISE CONTROL for Cabriolet
.

NOTE:

Lubricate all bearings and contact surfaces with polycarbamide grease G052142A2 .
Before working on pedal cluster, remove storage compartment on drivers side →
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for Cabriolet
.
Make sure that no brake fluid escapes into the footwell, the plenum chamber or onto the transmission below. If this does happen, clean the affected area thoroughly.
When performing work in the footwell, put cloths on the carpet to protect it from possible brake fluid spills.

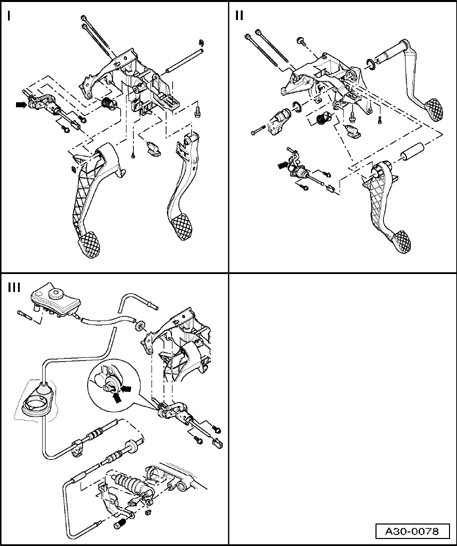

Fig 1: Exploded View Of Pedal Cluster And Exploded View Of Hydraulic System

Courtesy of VOLKSWAGEN UNITED STATES, INC.

I - Pedal cluster (LHD vehicles), assembly overview → Pedal cluster (LHD vehicles), assembly overview

II - Pedal cluster (RHD vehicles), assembly overview → Pedal cluster (RHD vehicles), assembly overview

III - Hydraulics, assembly overview → Hydraulic system, assembly overview
